GemDent ApexDrive Blue: Advanced Fatigue Resistance
The GemDent ApexDrive Blue Rotary Files represent the next generation of endodontic flexibility. Engineered with advanced Blue heat-treatment technology, these files offer a significant upgrade in cyclic fatigue resistance, providing clinicians with the confidence to navigate even the most constricted and severely curved canals.
As the core of the ApexDrive System, the Blue Alloy provides a unique balance of "controlled memory" and cutting efficiency. This ensures the file follows the natural canal curvature rather than attempting to straighten it, drastically reducing the risk of ledging or transportation.
🔹 The "Blue" Advantage: Ultimate Flexibility
Due to the proprietary Blue heat-treatment process, these files exhibit Controlled Memory. They may appear slightly curved or retain a specific shape—this is a deliberate design characteristic. The file is engineered to stay centered in the canal and can be manually straightened or pre-bent to bypass obstacles without losing structural integrity.
🚀 Performance Features
-
Advanced Blue NiTi Alloy: Specialized heat treatment for superior cyclic fatigue resistance in the most challenging anatomies.
-
Anatomical Preservation: High elasticity ensures the file maintains the original canal path, preventing "zipping" or apical transportation.
-
Optimized Cutting Efficiency: Precision-ground flutes provide a smooth, "active" feel during canal progression.
-
Reliable Durability: Supports consistent performance during extended instrumentation in calcified cases.
-

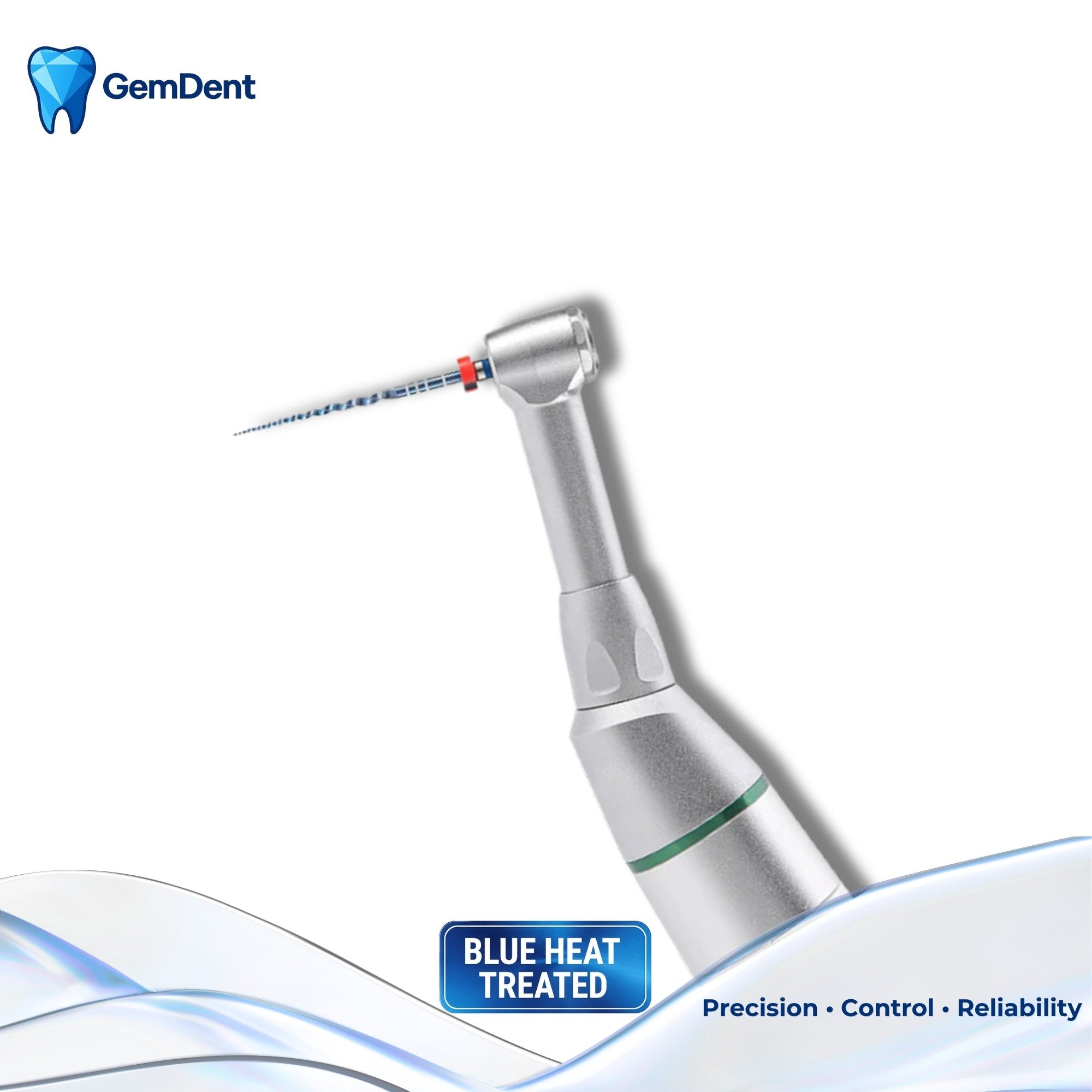

Universal Compatibility: Designed for use with most standard rotary endodontic motors.
-
Intuitive Identification: ISO color-coded system for effortless file sequence recognition.
📊 Technical Specifications
| Feature | Details |
| Material | Blue Heat-Treated Nickel-Titanium (NiTi) |
| Motion | Continuous Rotary Motion |
| Available Lengths | 19mm (SX only) | 21mm (All sizes) | 25mm (All sizes) |
| Shaping Files | SX (19mm Orifice Opener) | S1 (Purple) | S2 (White) |
| Finishing Files | F1 (Yellow) | F2 (Red) | F3 (Blue) | F4 (Black) | F5 (Yellow) |

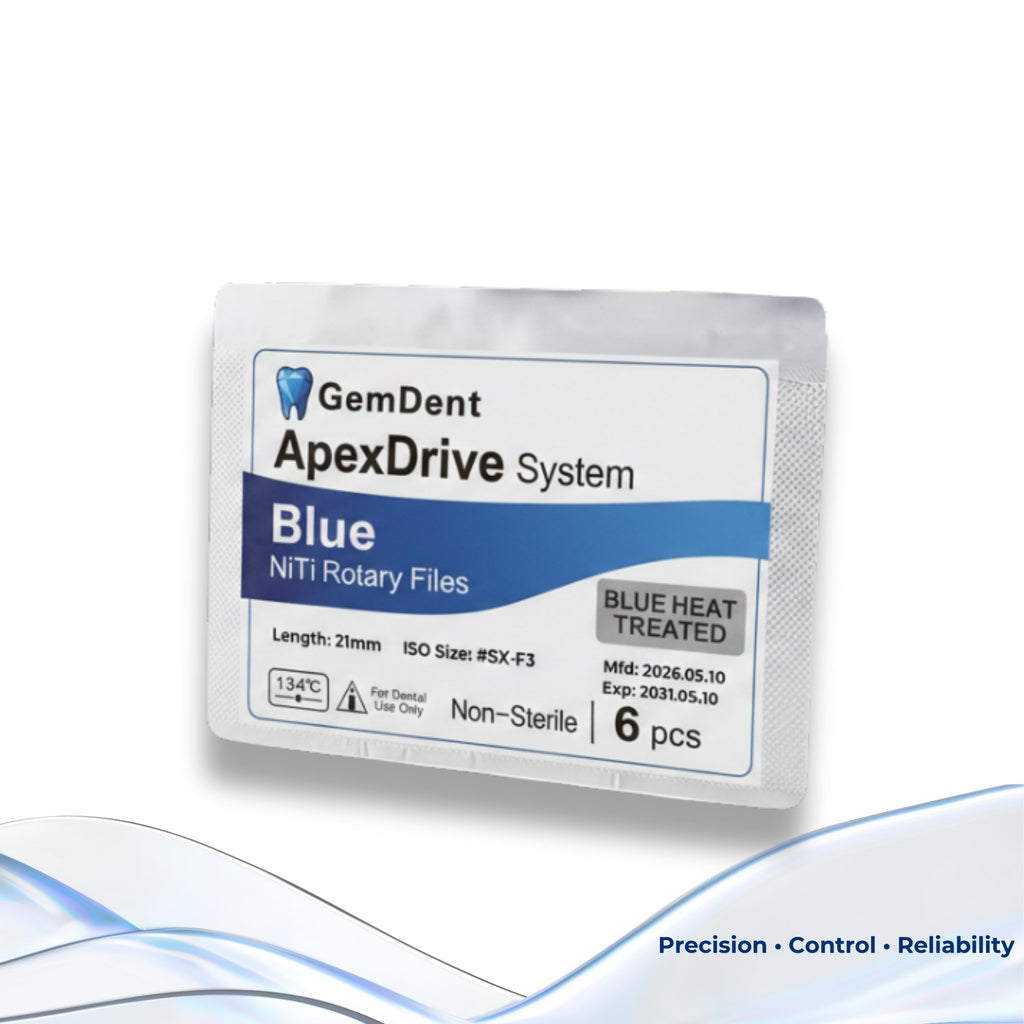

| Packaging | 6 Files per Pack |
📏 Available Sizes & Assortments
-
Assorted Strategy Packs (6 Files per Pack)
-

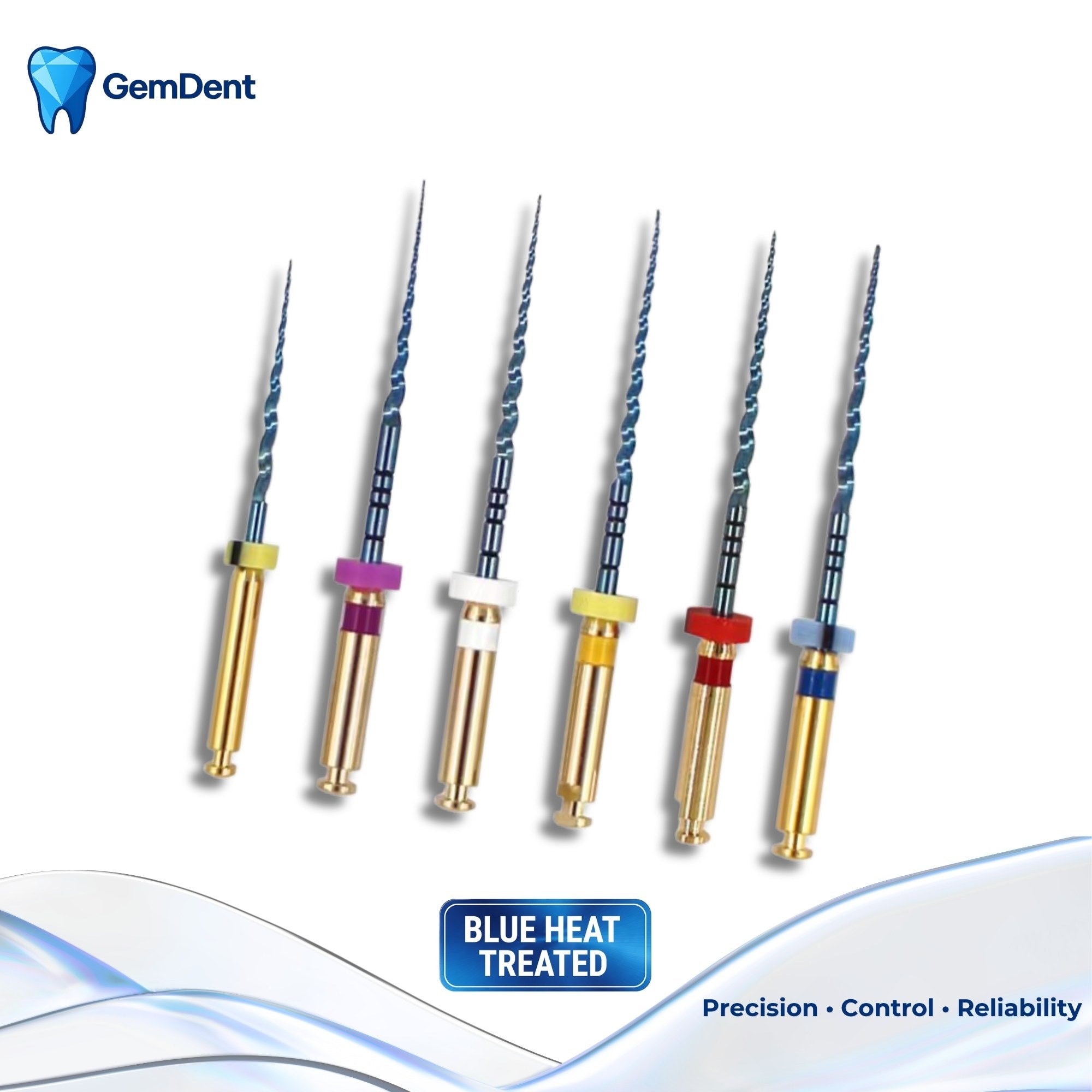

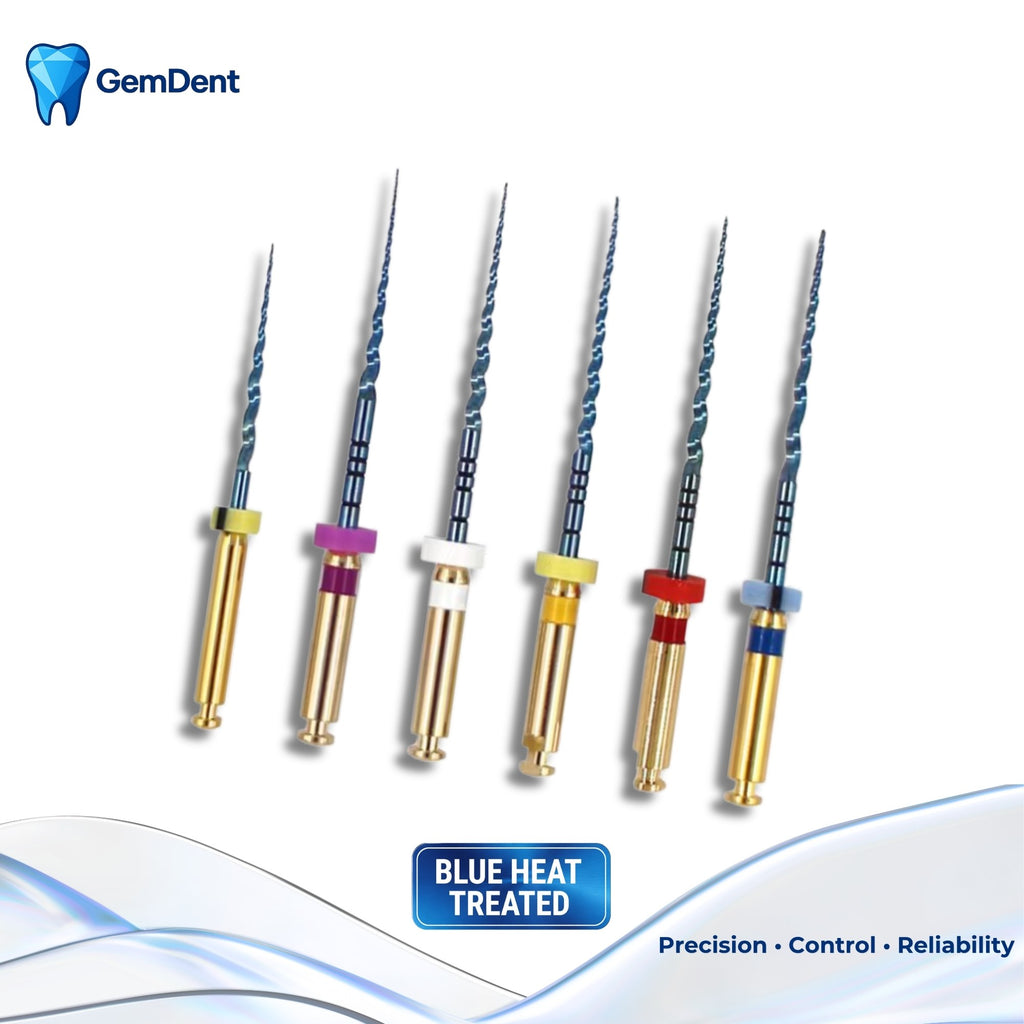

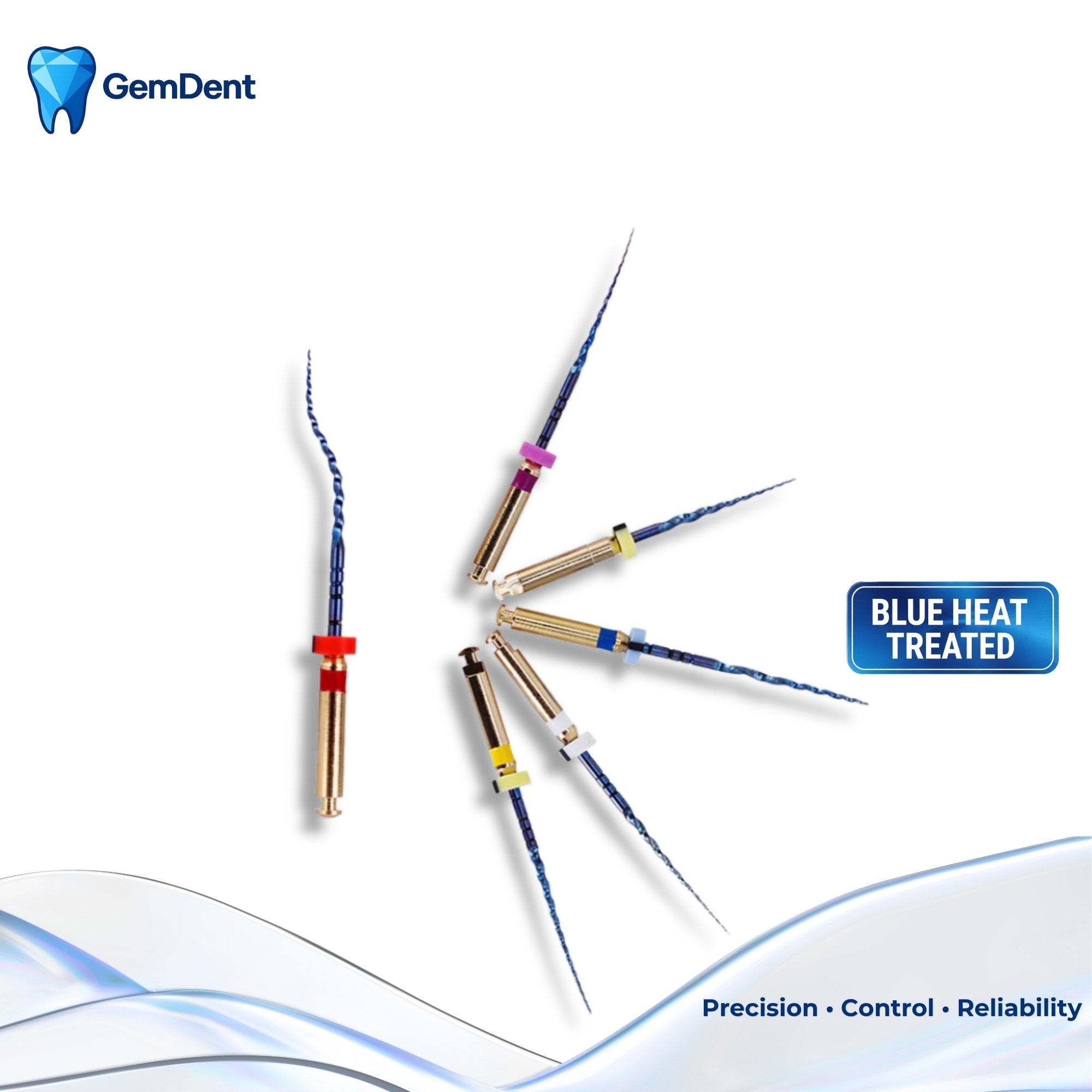

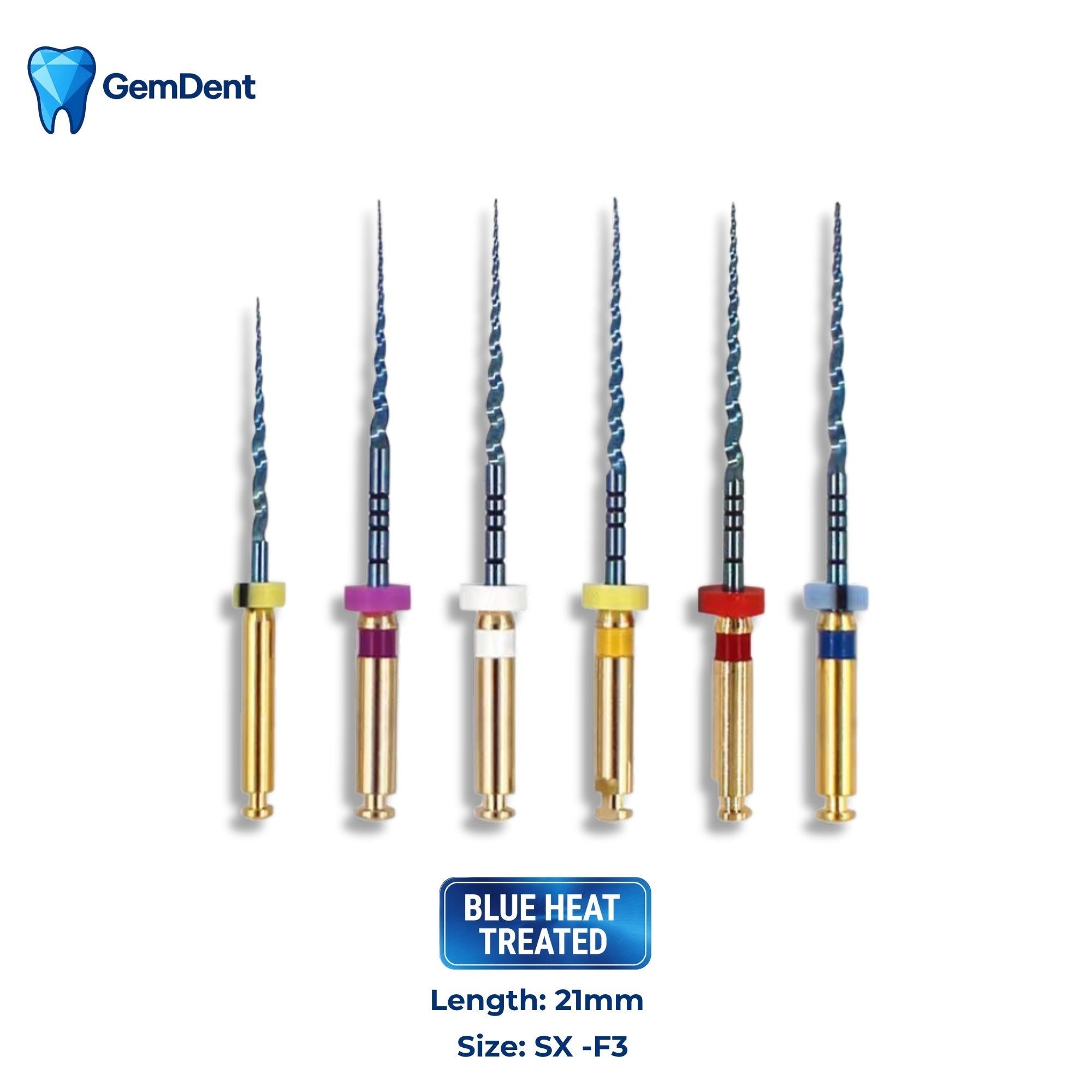

SX–F3 Assorted (21mm or 25mm): The complete clinical sequence for most cases. Includes 19mm SX plus S1, S2, F1, F2, F3.
-
-
Individual Shaping Files (Refill Packs)
-

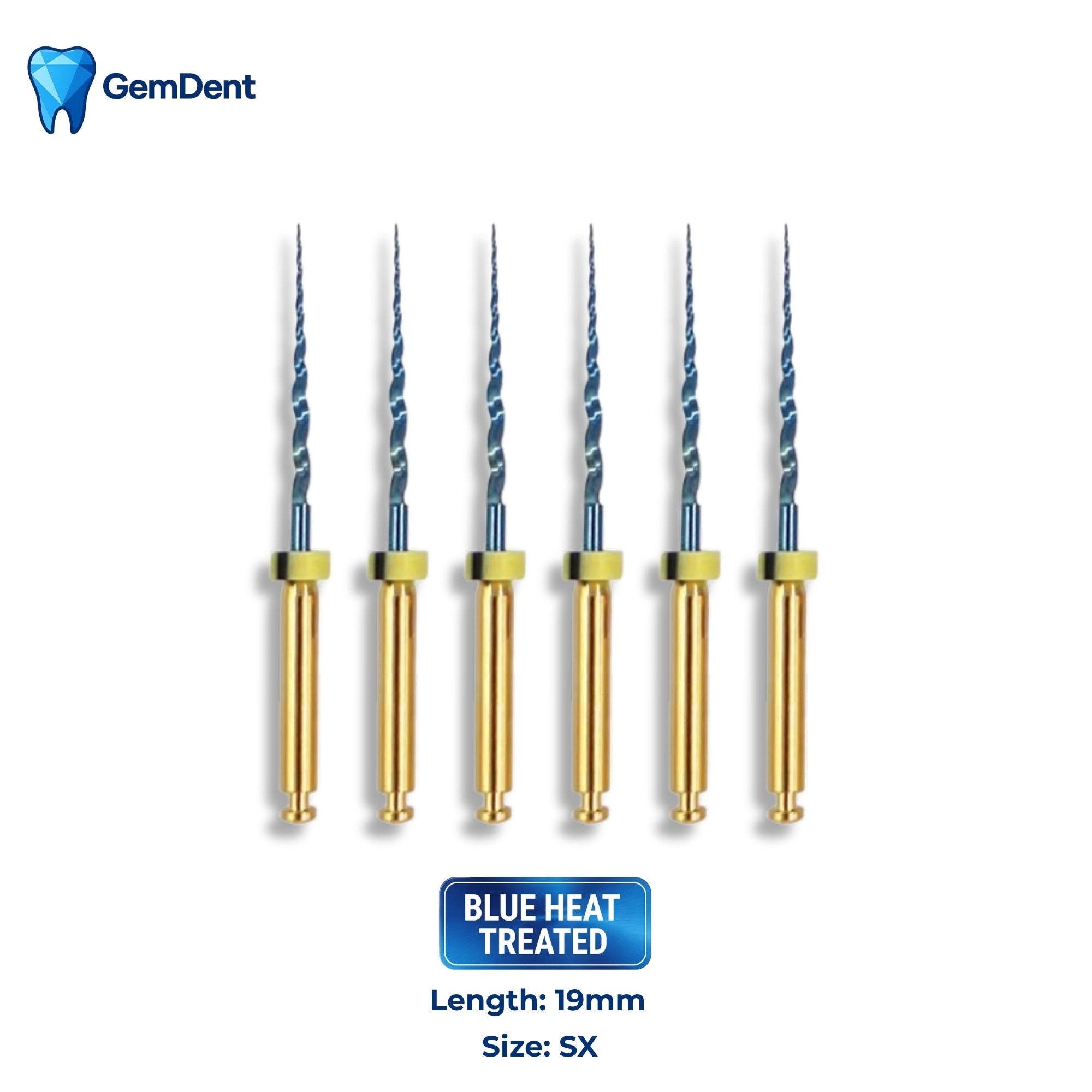

SX (19mm) — Gold: Auxiliary shaping file for orifice opening and coronal access.
-

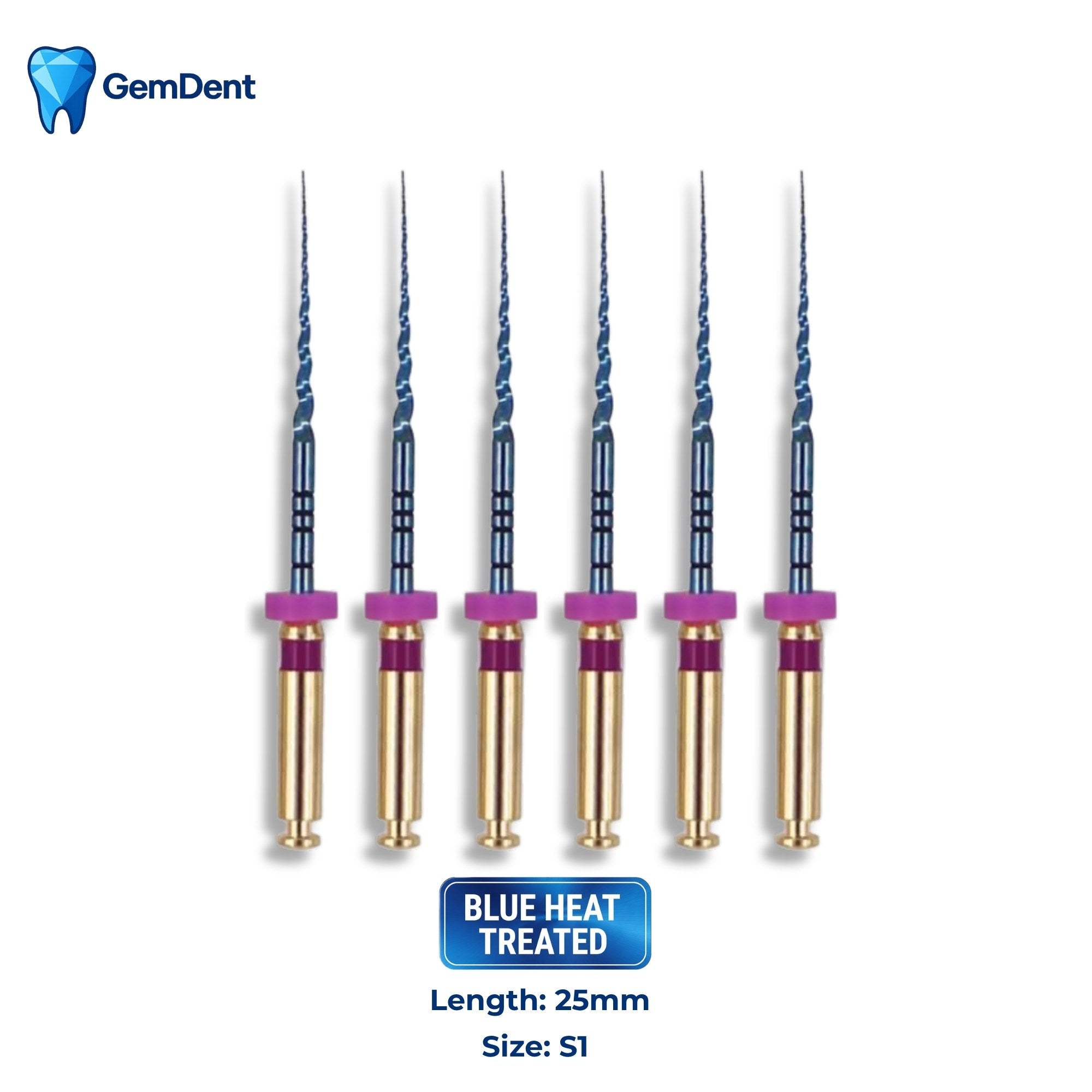

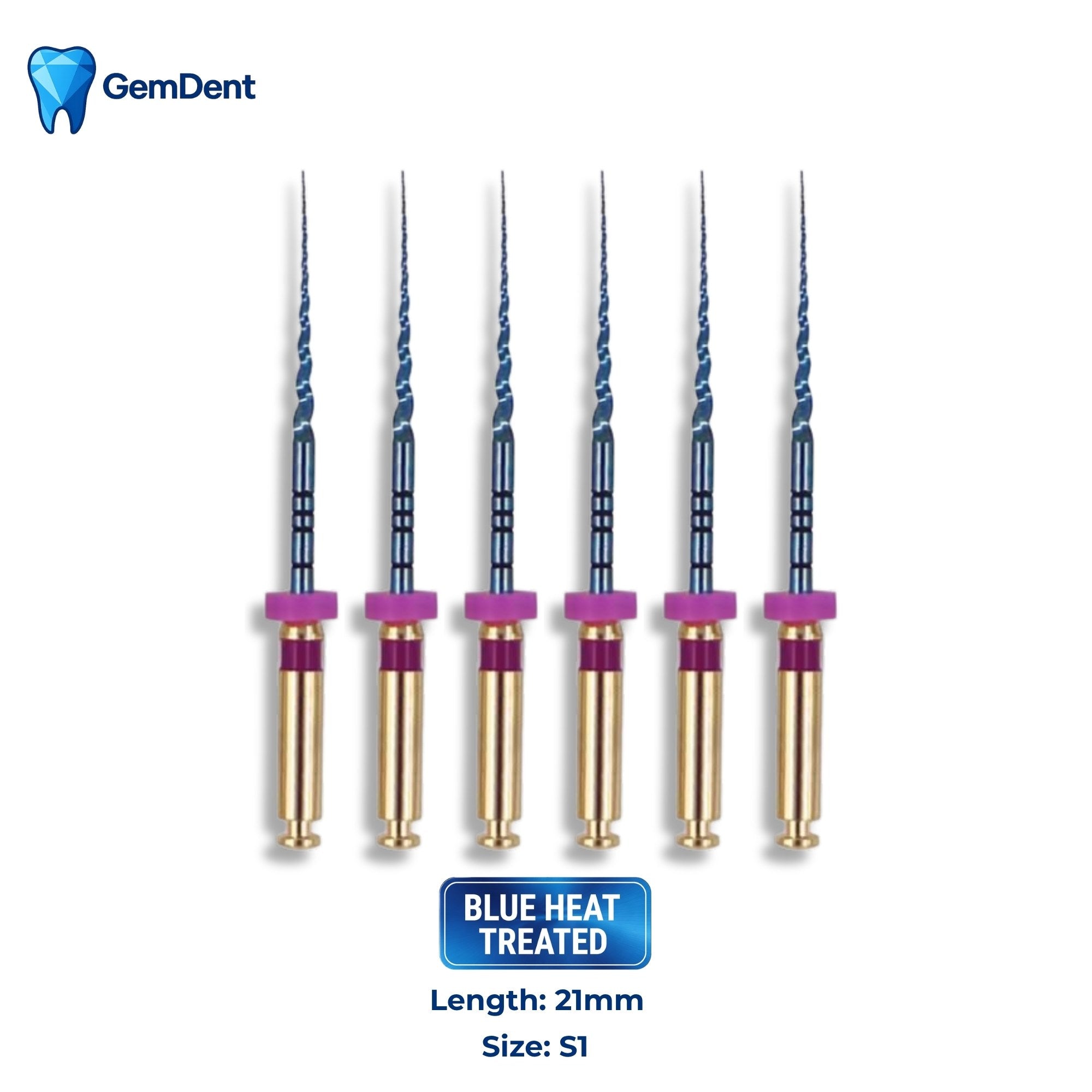

S1 (Purple): Available in 21mm & 25mm lengths.
-

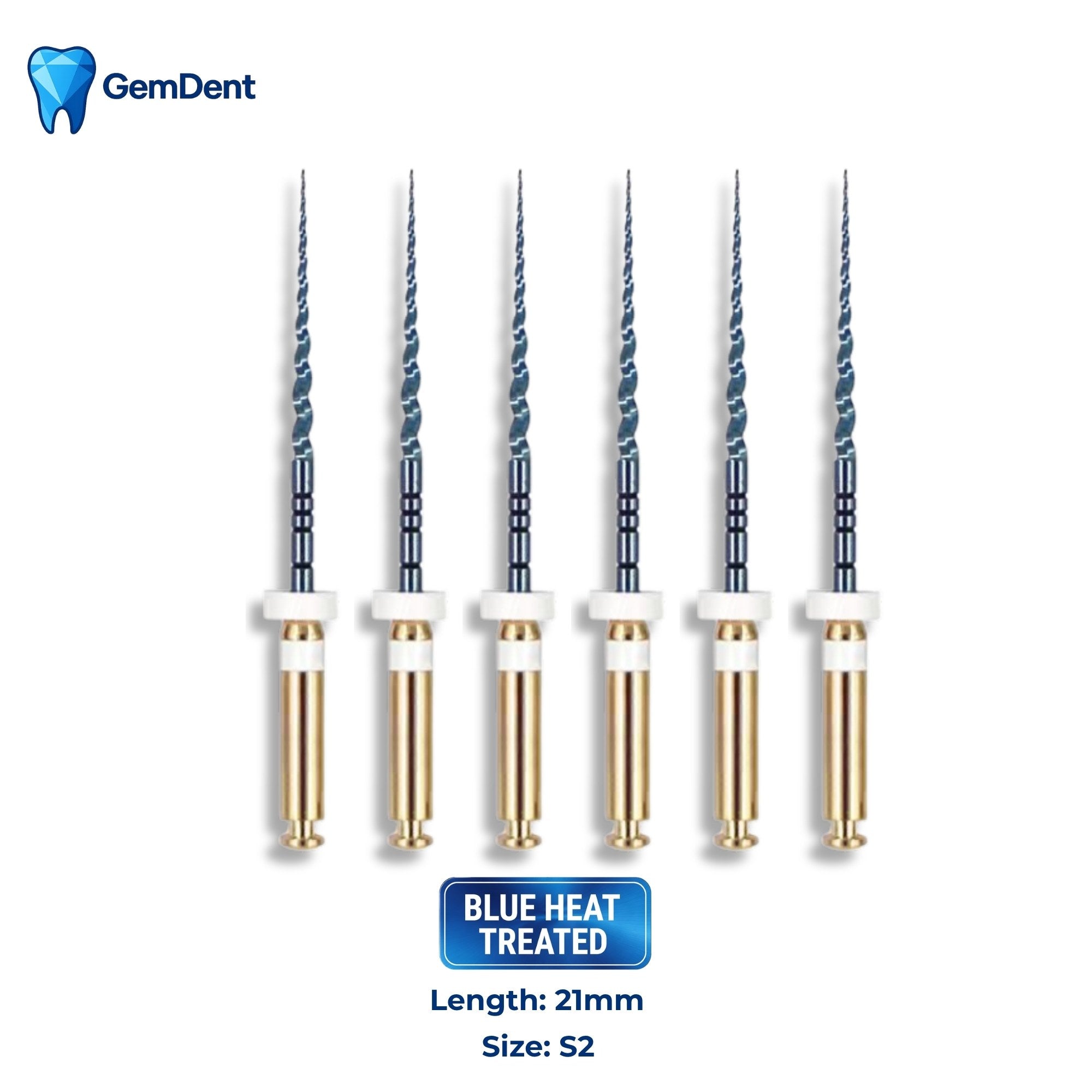

S2 (White): Available in 21mm & 25mm lengths.
-
- Individual Finishing Files (Refill Packs)
-
-

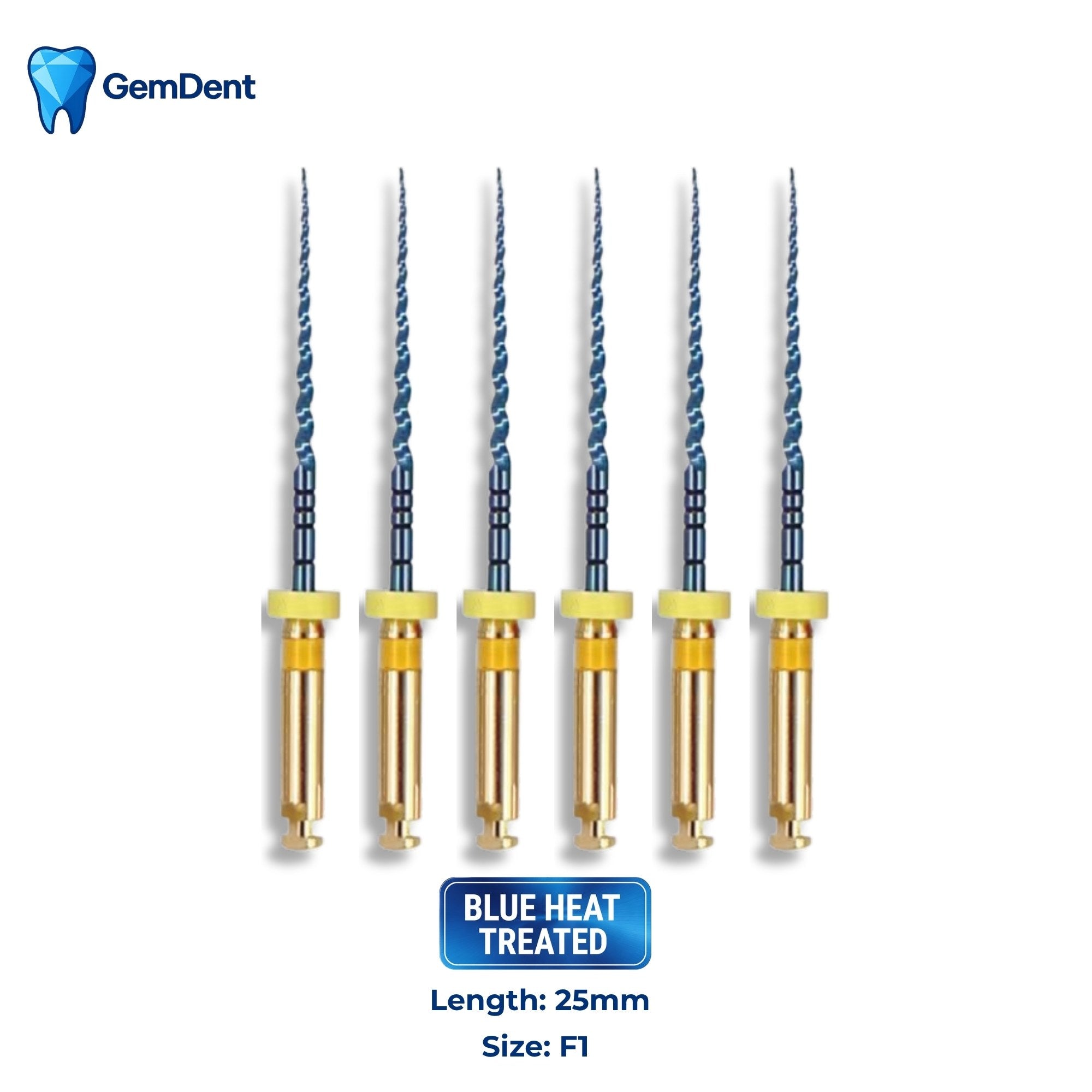

F1 (Yellow): Available in 21mm & 25mm lengths.
-

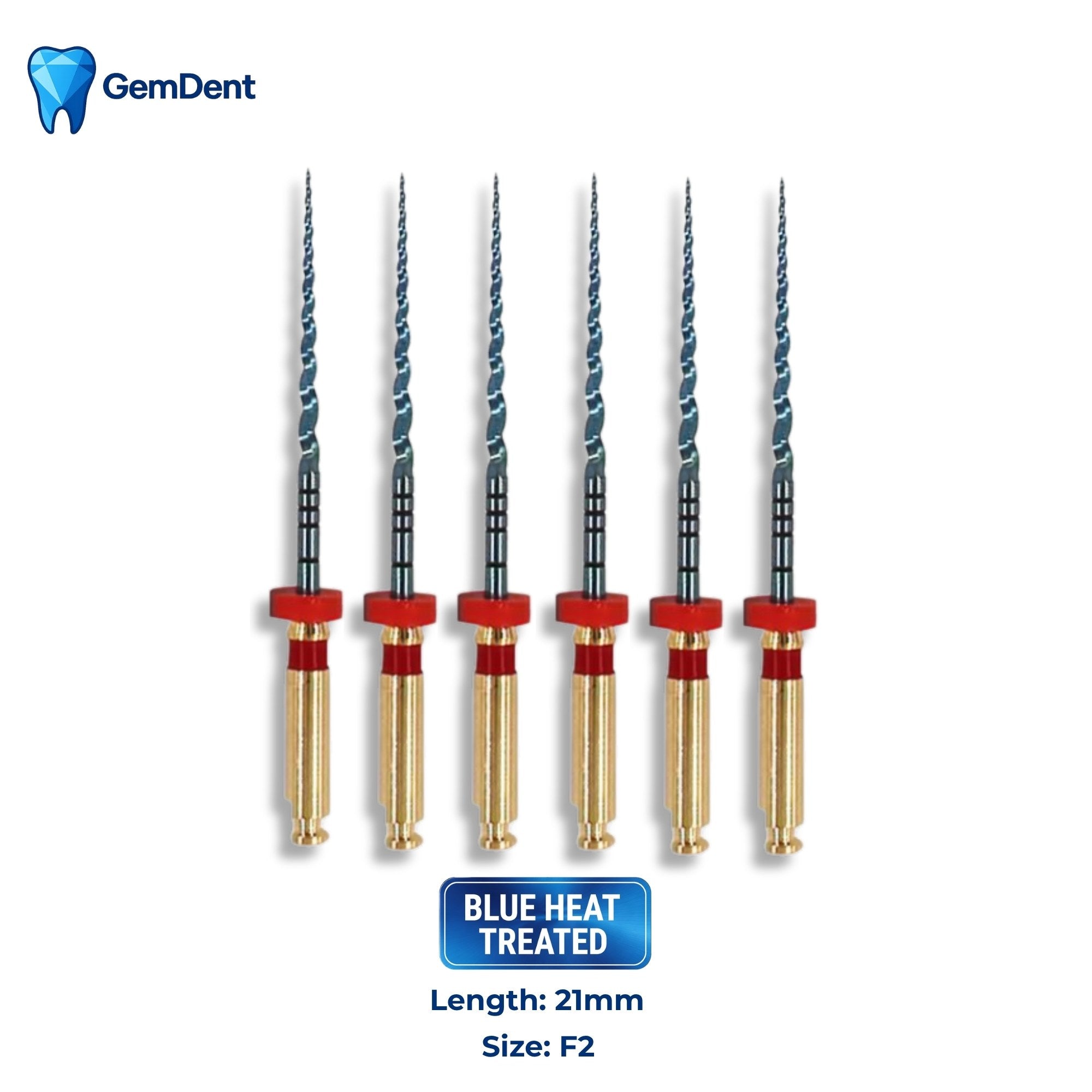

F2 (Red): Available in 21mm & 25mm lengths.
-

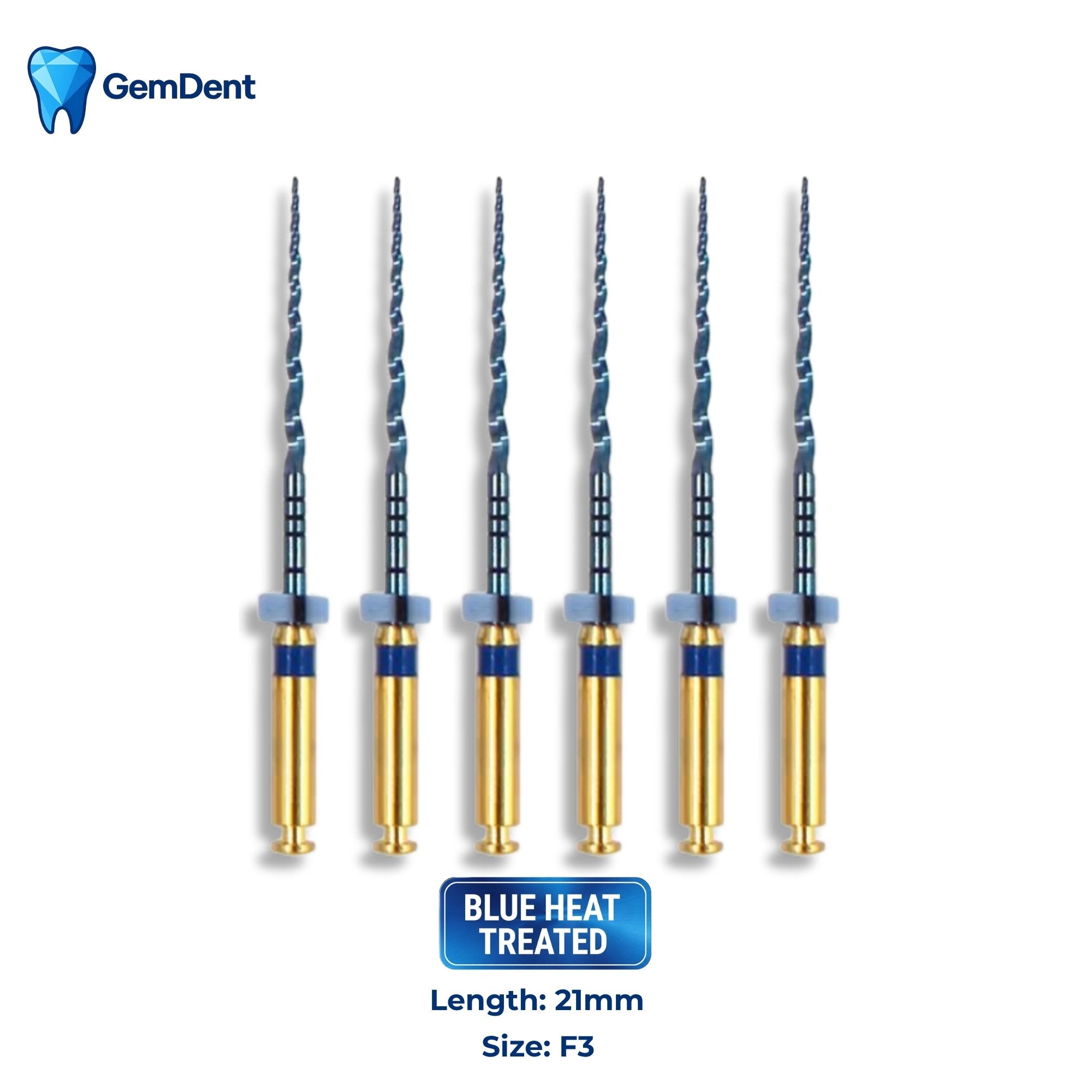

F3 (Blue): Available in 21mm & 25mm lengths.
-

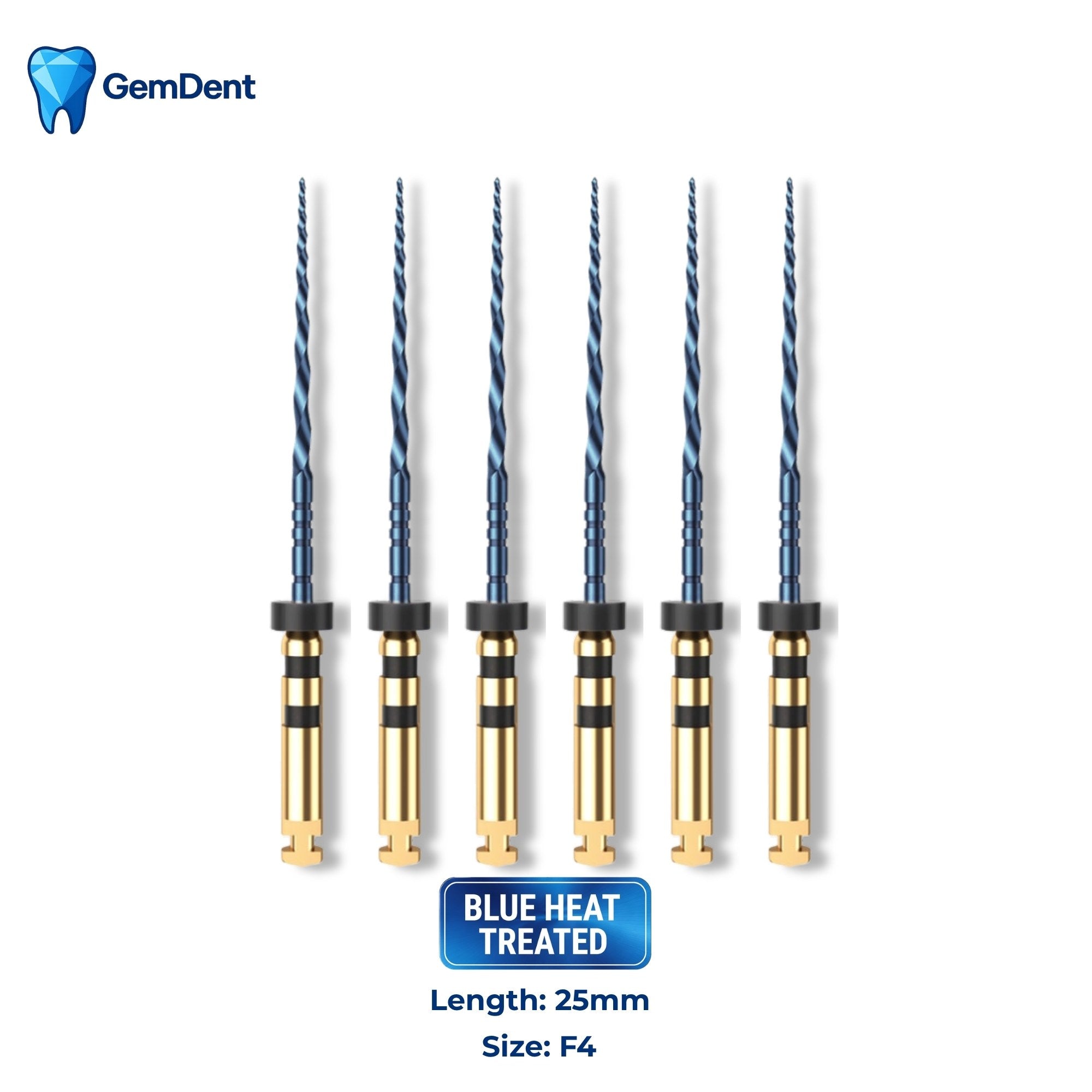

F4 (Black): Available in 21mm & 25mm lengths.
-

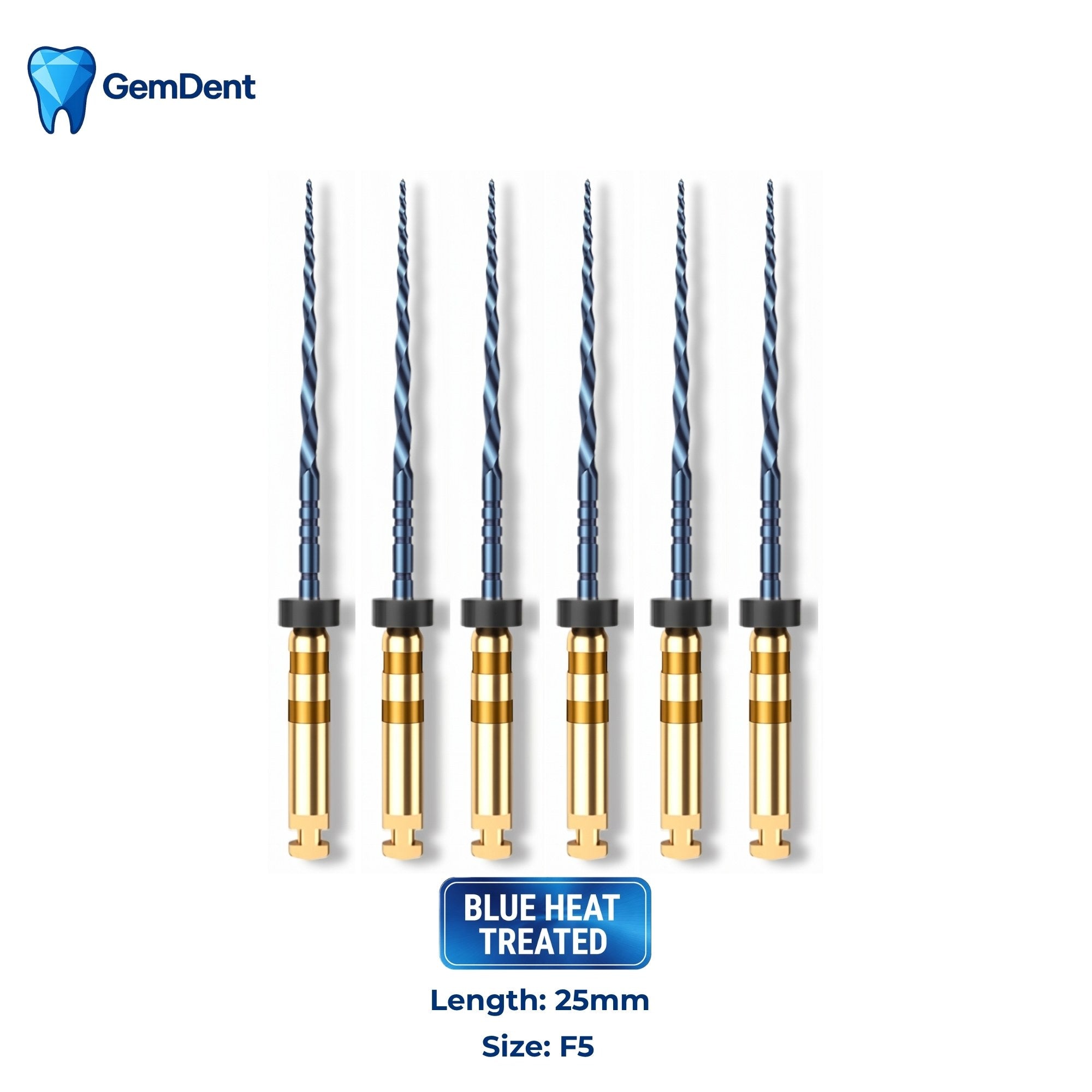

F5 (Yellow): Available in 21mm & 25mm lengths.
-
⚠️ Clinical Guidelines & Safety
Instrumentation Protocol
-
Glide Path: Establish a confirmed, reproducible glide path (minimum ISO 015) before introducing rotary files.
-
Shaping (SX, S1, S2): Use a gentle brushing action on the withdrawal stroke to create coronal space.
-
Finishing (F1–F5): Passively follow the canal to the working length and withdraw immediately. Do not use a brushing motion with finishing files.
-
Pressure: Use minimal apical pressure. Never force the file; if resistance is met, recapitulate and irrigate.
Maintenance & Inspection
-
Visual Check: Inspect flutes frequently for signs of unwinding, wear, or dull spots. Discard any deformed files immediately.
-
Chemical Exposure: Avoid prolonged immersion in high-concentration sodium hypochlorite.
-
Irrigation: Frequently irrigate, recapitulate, and re-irrigate throughout the entire procedure.
Patient Safety Note: This product contains Nickel-Titanium. Do not use on patients with known nickel sensitivities. Single-Use is recommended to ensure maximum resistance to cyclic fatigue and prevent cross-contamination.
