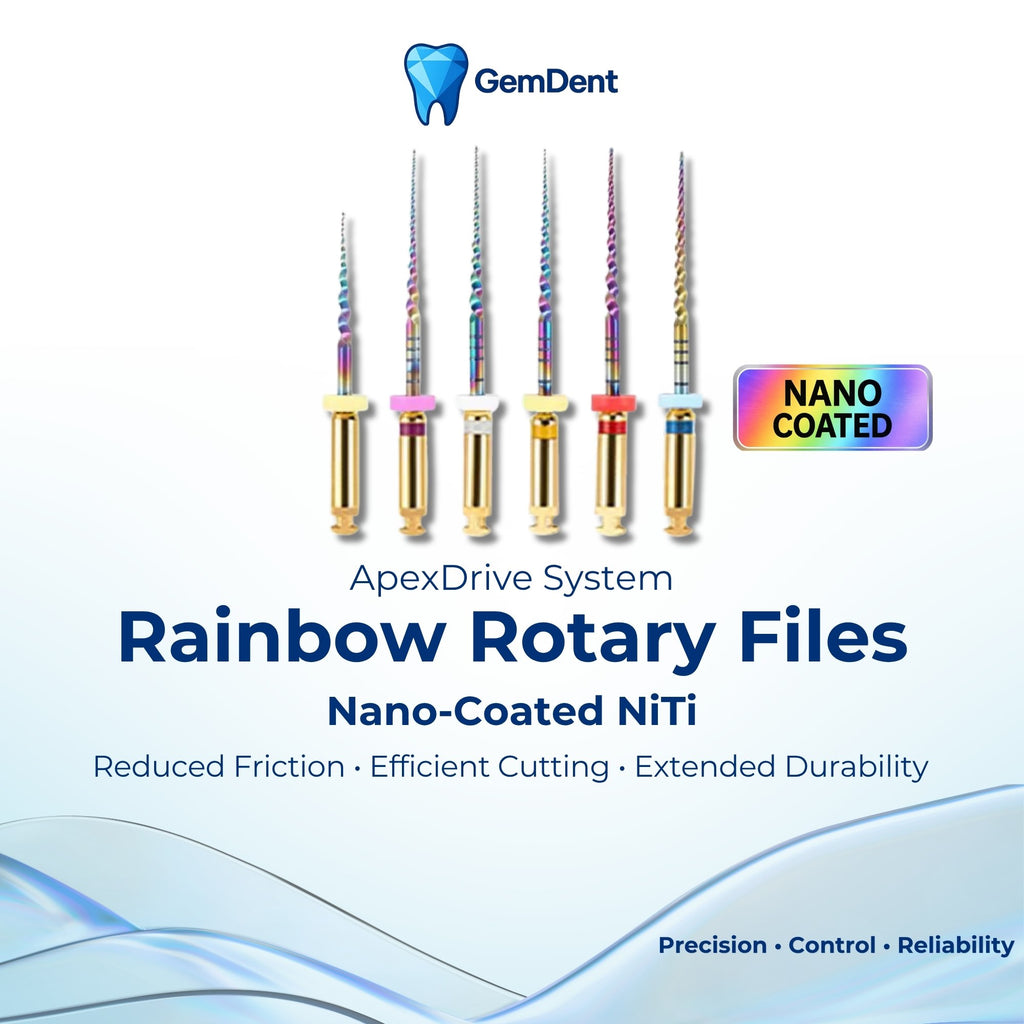

GemDent ApexDrive Rainbow: The Pinnacle of Nano-Technology
The GemDent ApexDrive Rainbow Rotary Files represent the ultimate evolution of the ApexDrive System. By integrating advanced heat-treatment with a proprietary Nano-Coated surface, these files deliver a refined balance of flexibility, cutting efficiency, and unmatched wear resistance.
The Nano-Coating technology significantly reduces surface friction, allowing for smoother canal progression and more efficient debris removal. Designed for elite precision, the Rainbow series supports controlled shaping while strictly preserving the original canal anatomy in even the most complex cases.
🌈 The Rainbow Advantage: Nano-Friction Reduction
The distinctive Rainbow finish isn't just aesthetic—it is a functional Nano-Layer designed to harden the cutting edges while smoothening the flute valleys. This results in a file that stays sharp longer and glides through calcified tissue with less "click-and-catch" resistance.

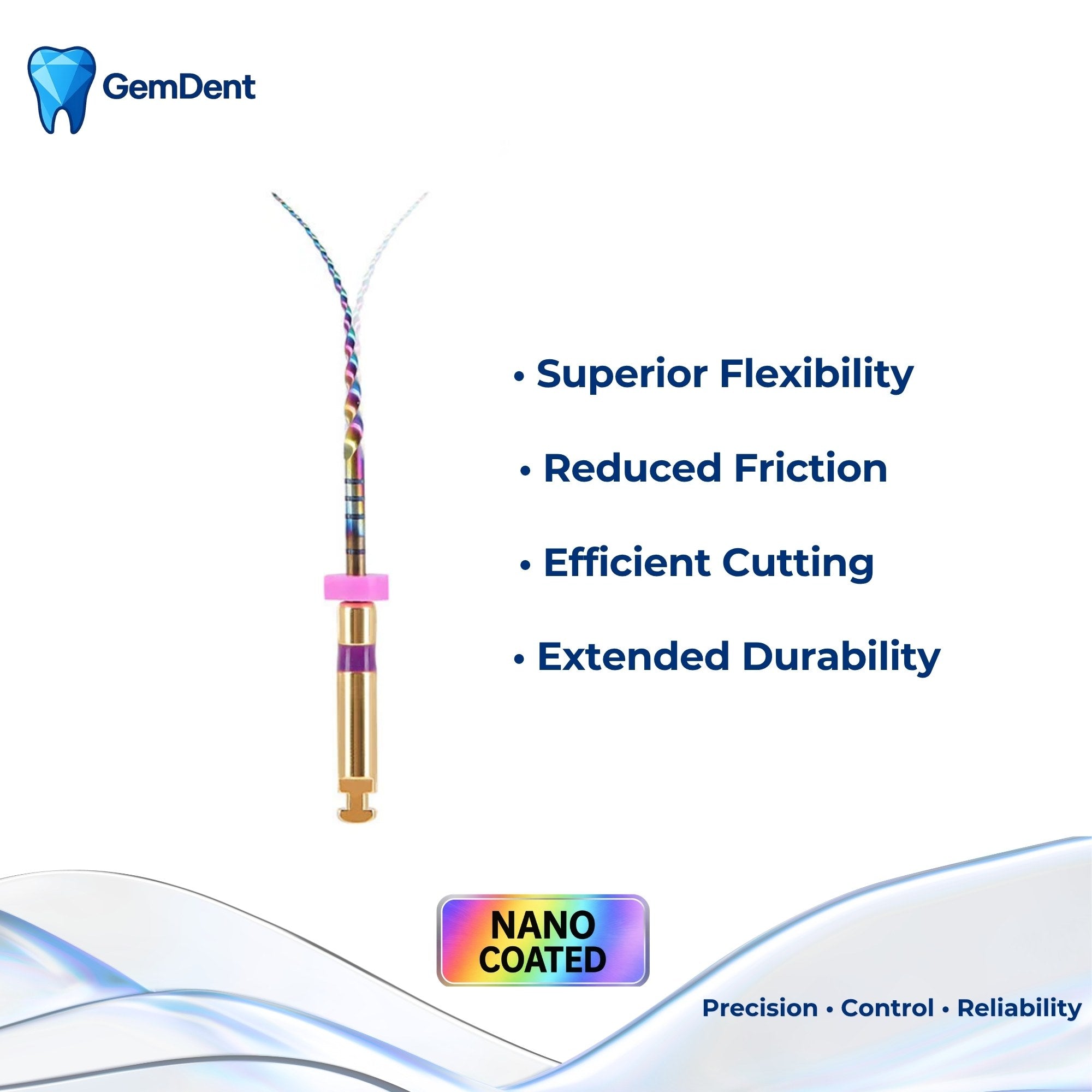

💎 Elite Performance Features
-
Nano-Coated Surface: Specialized coating reduces friction by up to 30%, ensuring smoother progression and enhanced debris evacuation.
-
Advanced Heat-Treated NiTi: Provides the "controlled memory" flexibility required for severely curved and complex morphologies.
-
Superior Wear Resistance: Hardened cutting edges maintain peak performance throughout the entire procedure, even in high-density dentin.
-
Anatomical Adaptability: Exceptional flexibility ensures the file stays centered, preventing zipping or apical transportation.
-
Universal Compatibility: Fully optimized for use with all major continuous rotary endodontic motors.
-
Streamlined Identification: ISO color-coded sequence for intuitive and rapid file selection.
📊 Technical Specifications
| Feature | Details |
| Material | Nano-Coated Heat-Treated NiTi Alloy |
| Motion | Continuous Rotary Motion |
| Available Lengths | 19mm (SX only) | 21mm (All sizes) | 25mm (All sizes) |
| Shaping Files | SX (19mm Orifice Opener) | S1 (Purple) | S2 (White) |
| Finishing Files | F1 (Yellow) | F2 (Red) | F3 (Blue) | F4 (Black) | F5 (Yellow) |

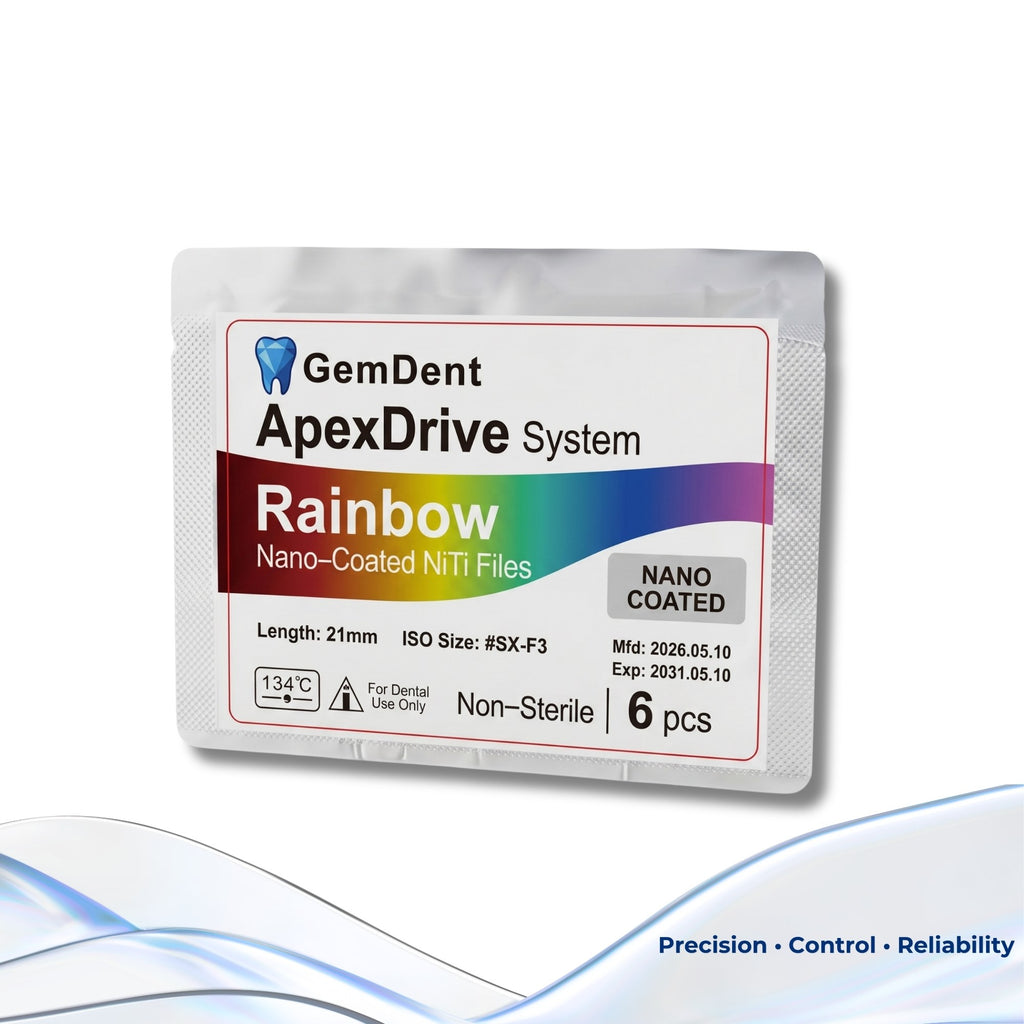

| Packaging | 6 Files per Pack |
📏 Available Sizes & Assortments
-
Assorted Strategy Packs (6 Files per Pack)
-

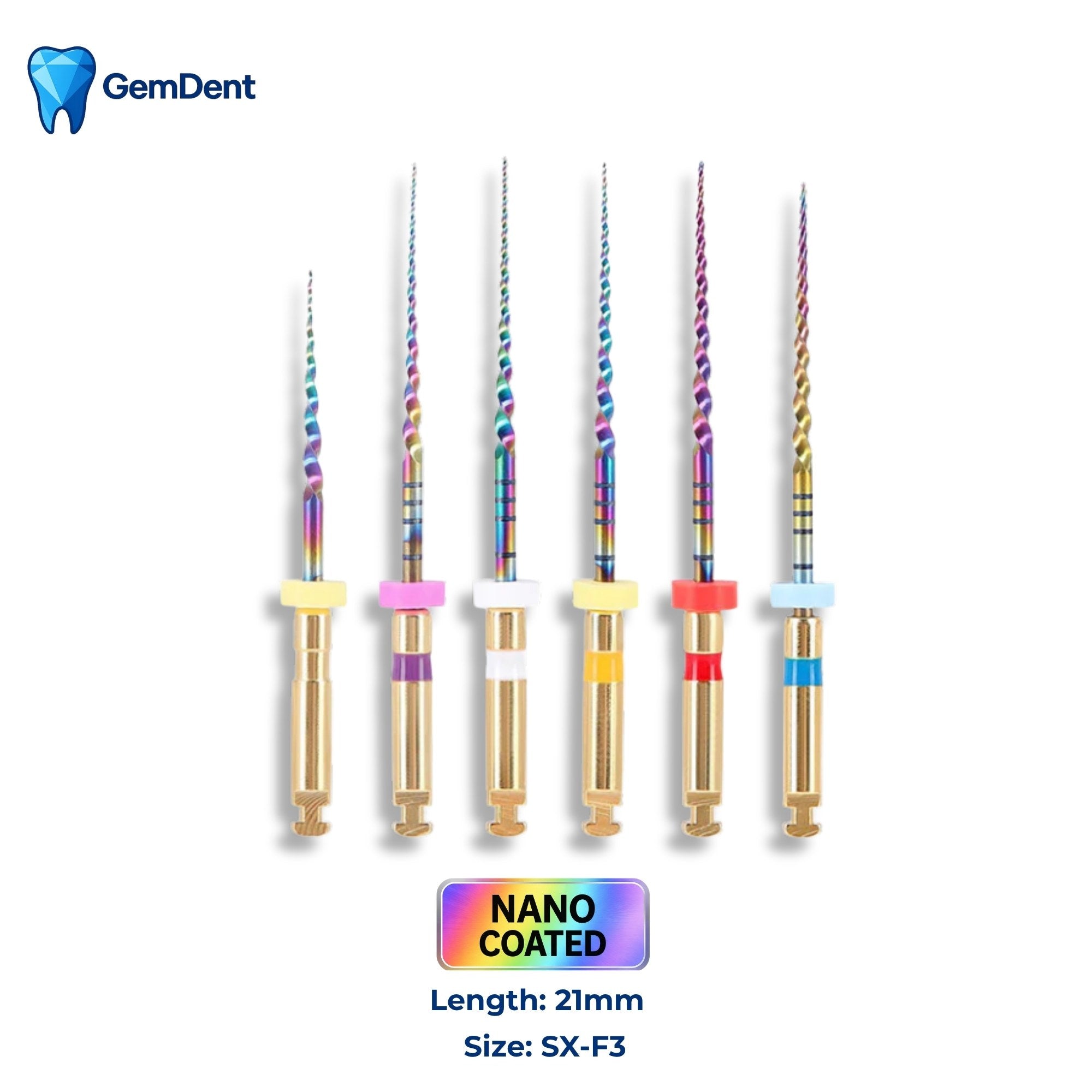

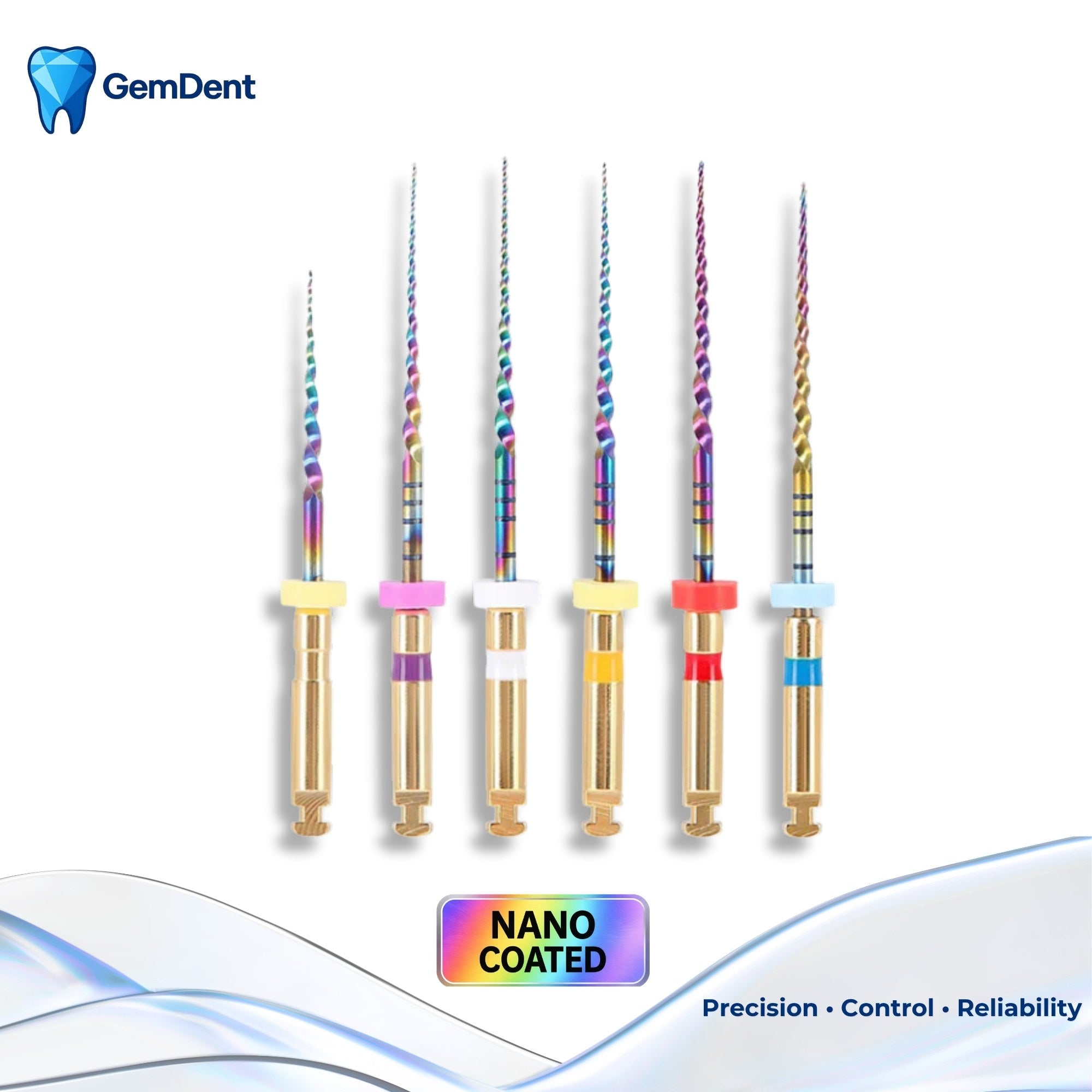

SX–F3 Assorted (21mm or 25mm): The complete clinical sequence for most cases. Includes 19mm SX plus S1, S2, F1, F2, F3.
-
-
Individual Shaping Files (Refill Packs)
-

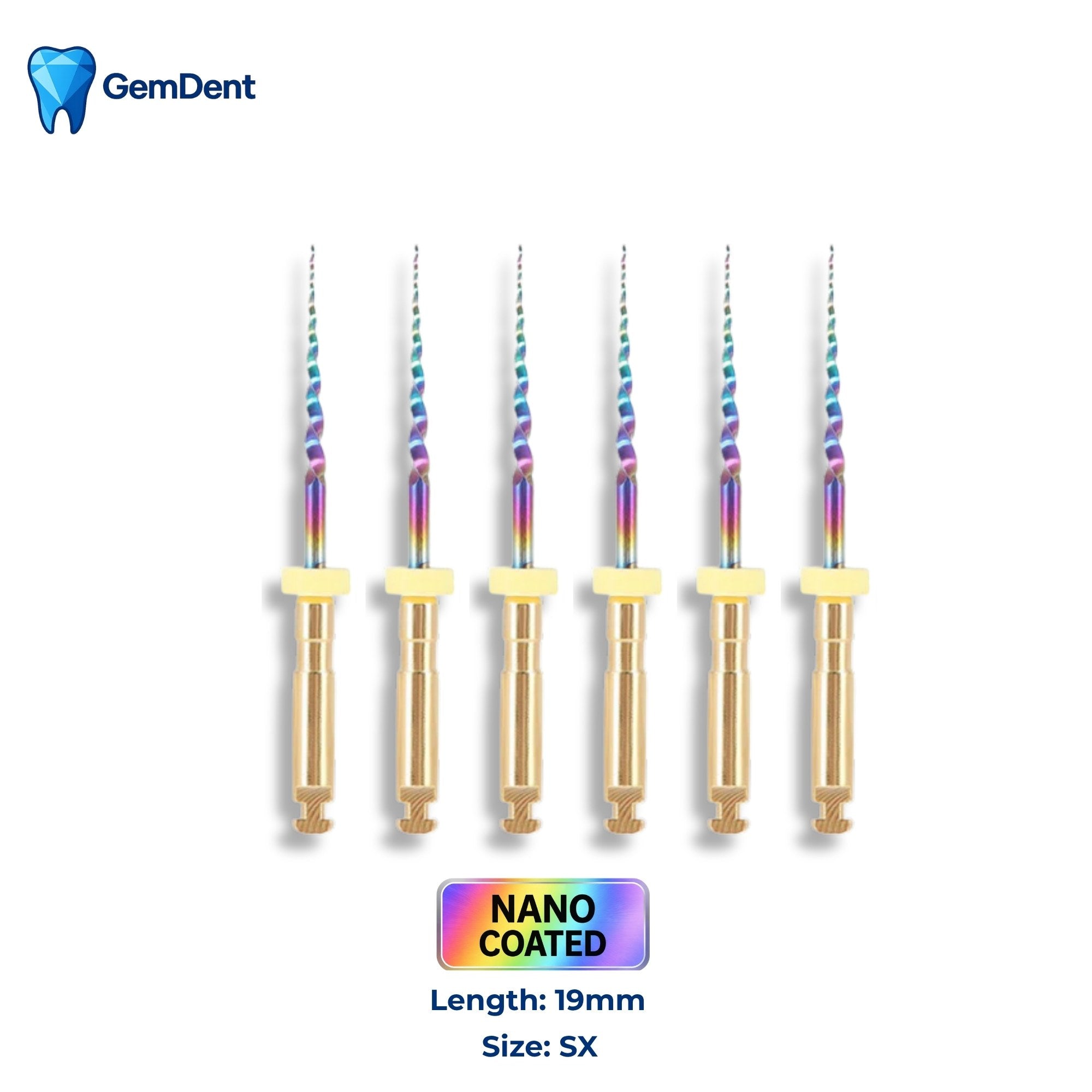

SX (19mm) — Gold: Auxiliary shaping file for orifice opening and coronal access.
-

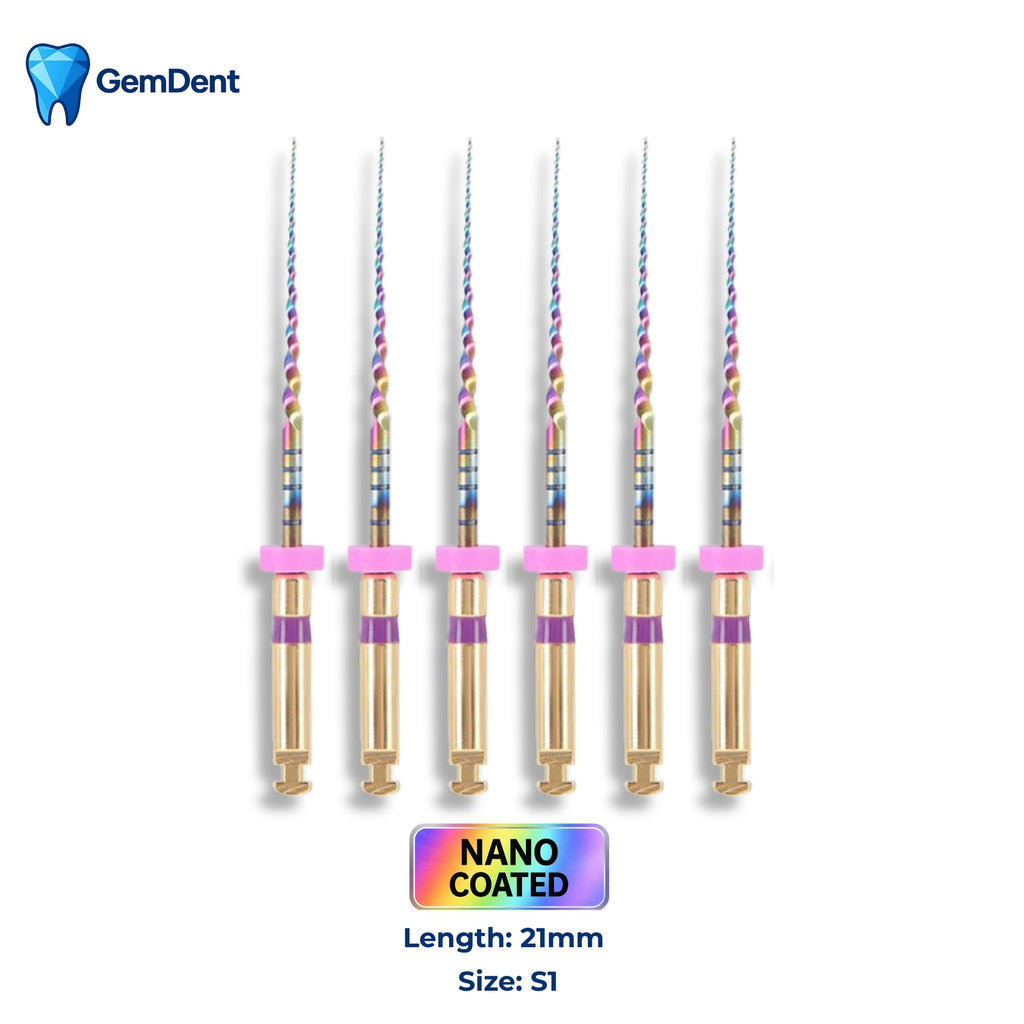

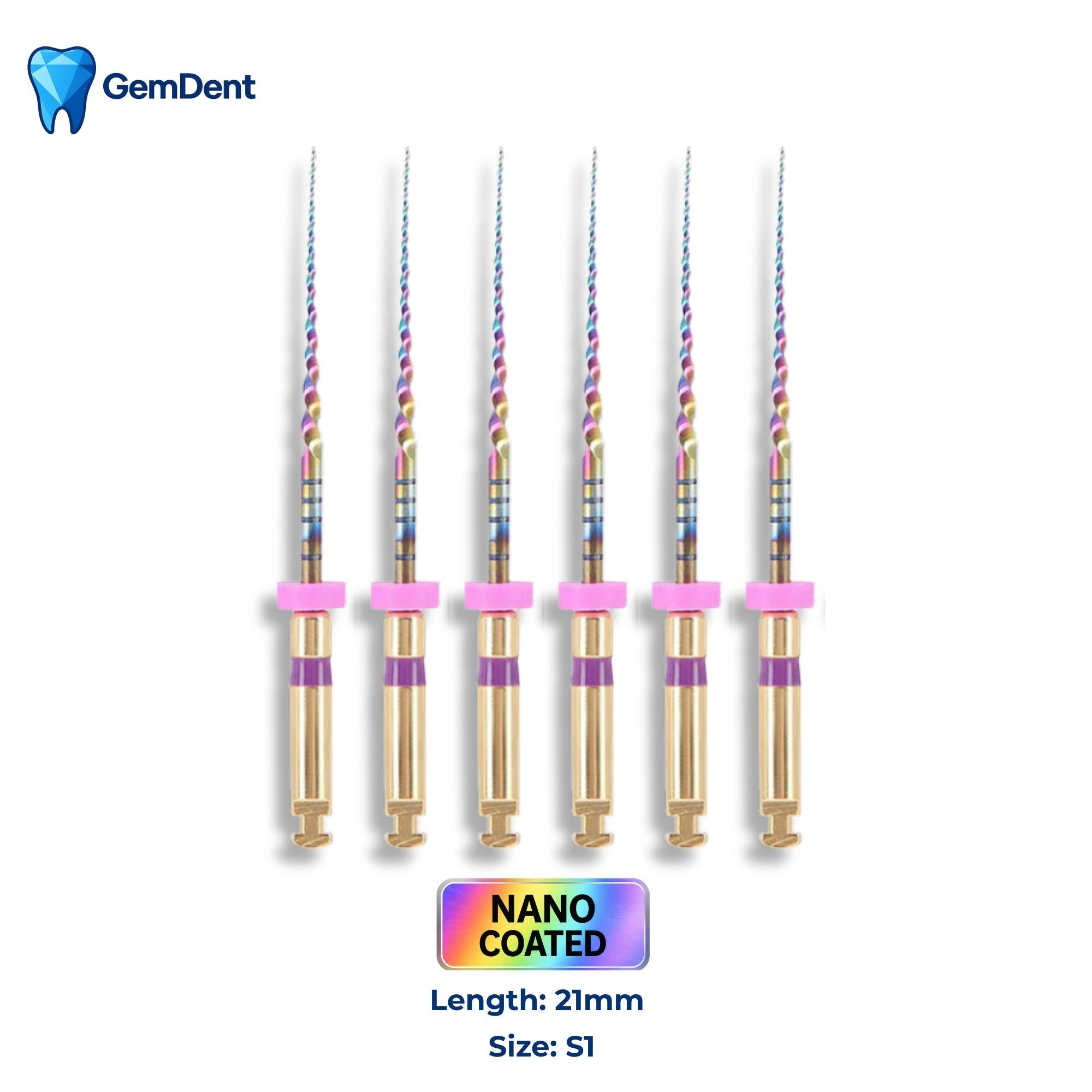

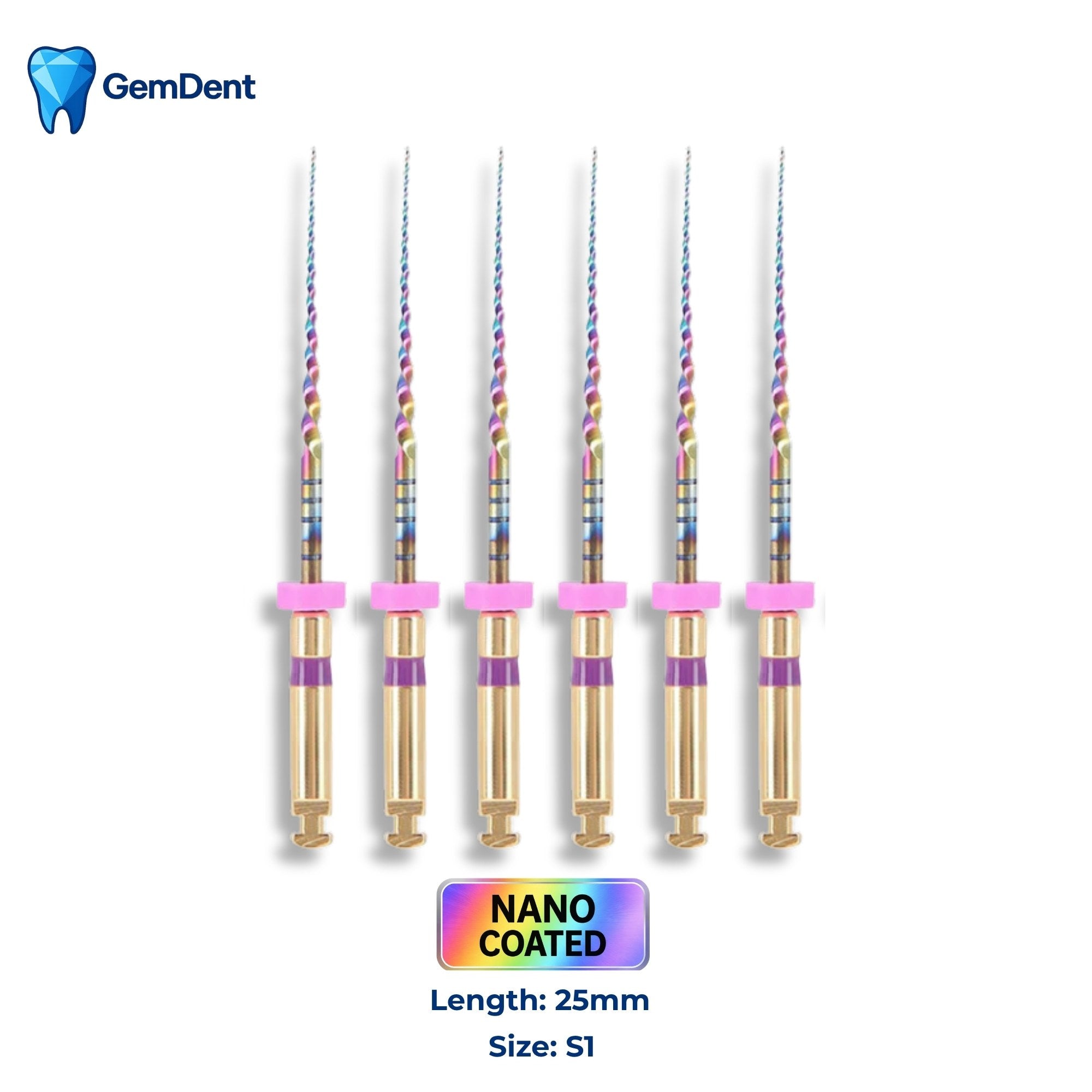

S1 (Purple): Available in 21mm & 25mm lengths.
-

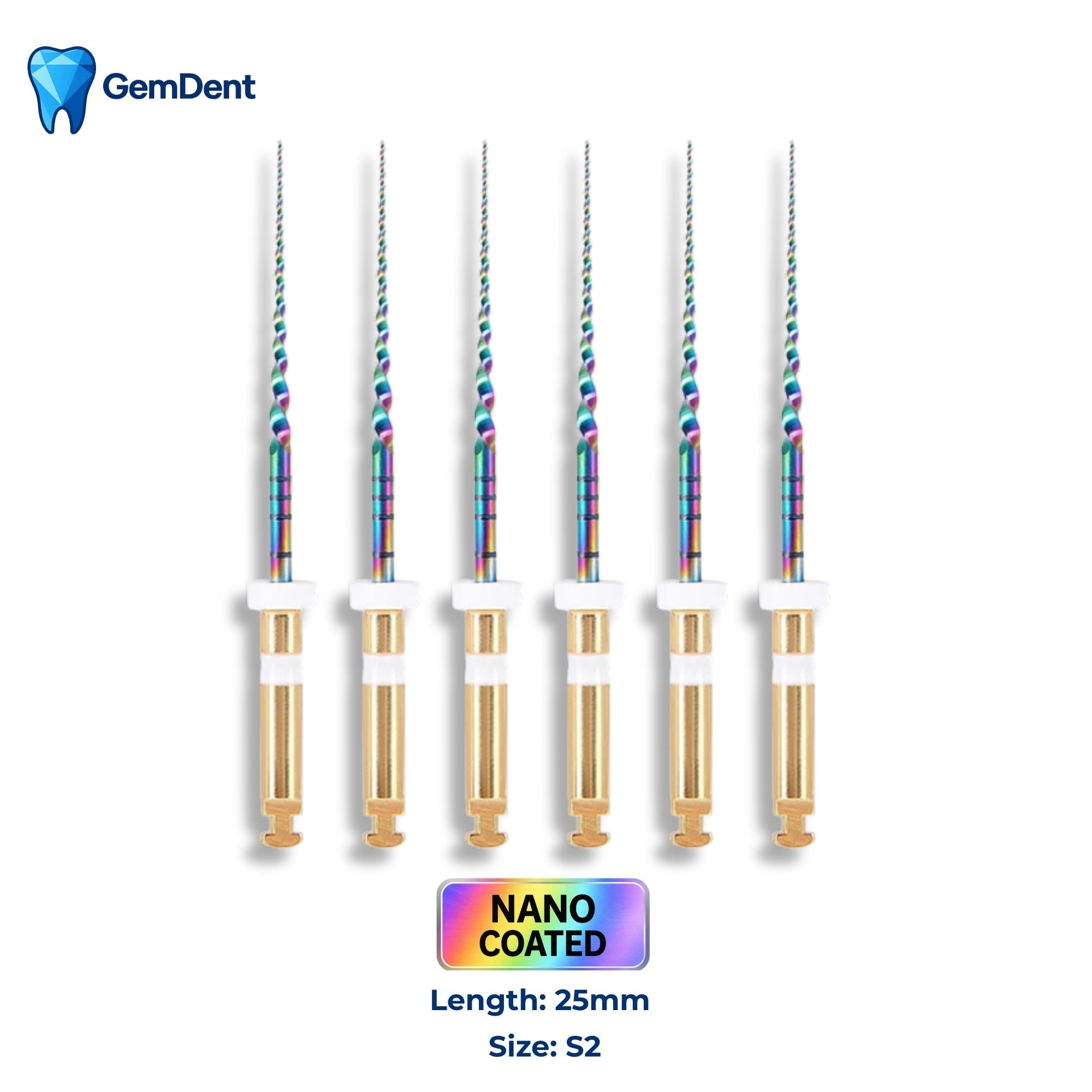

S2 (White): Available in 21mm & 25mm lengths.
-
- Individual Finishing Files (Refill Packs)
-
-

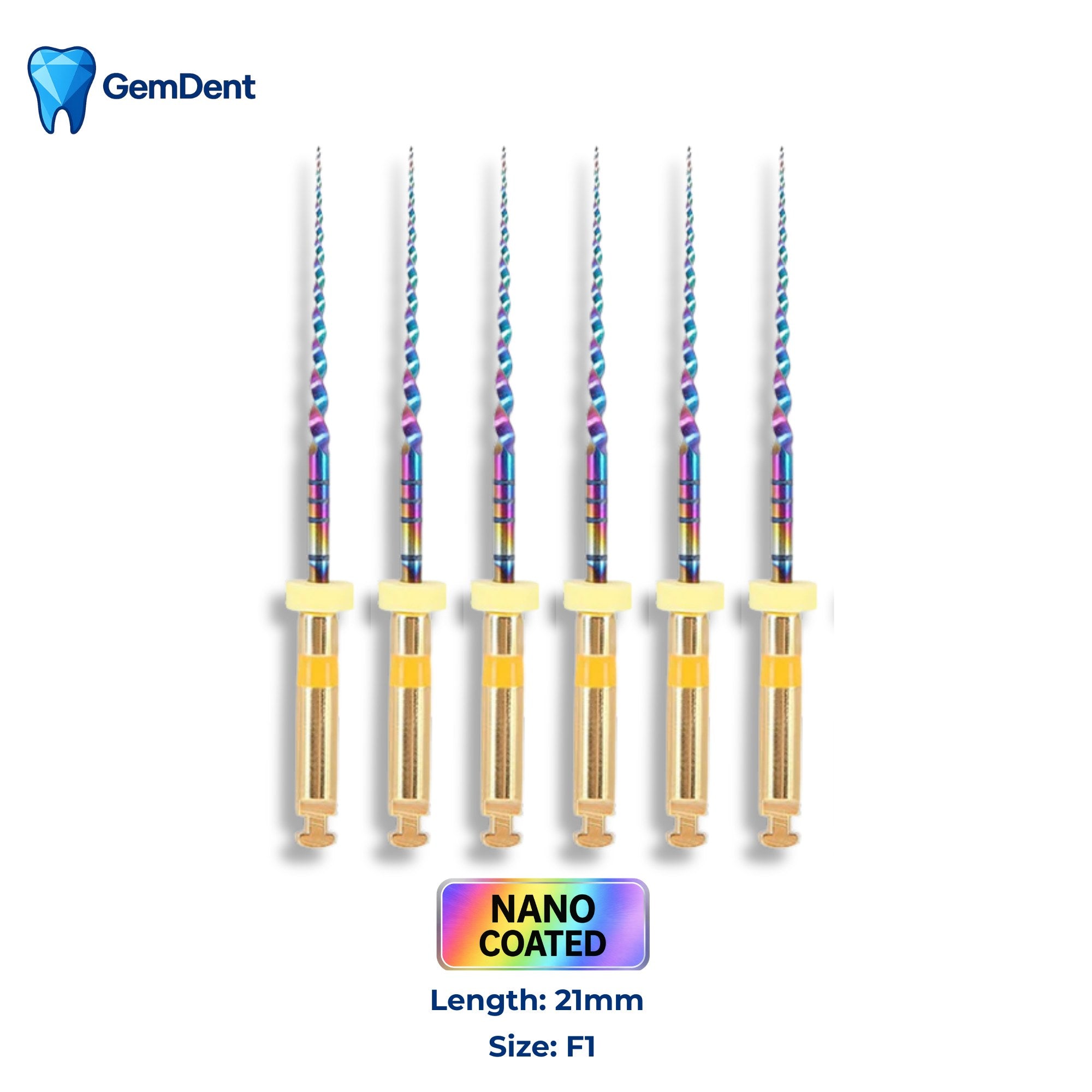

F1 (Yellow): Available in 21mm & 25mm lengths.
-

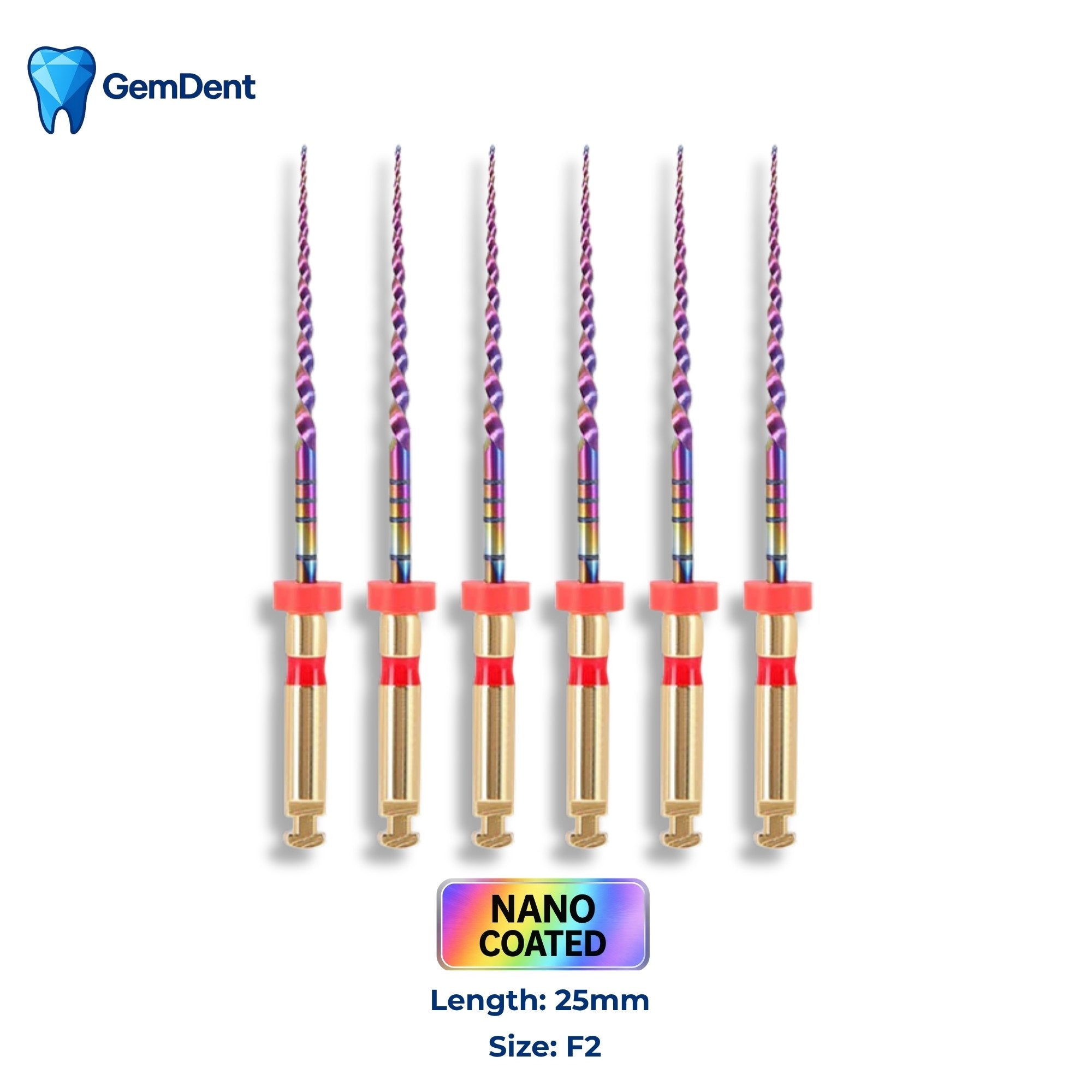

F2 (Red): Available in 21mm & 25mm lengths.
-

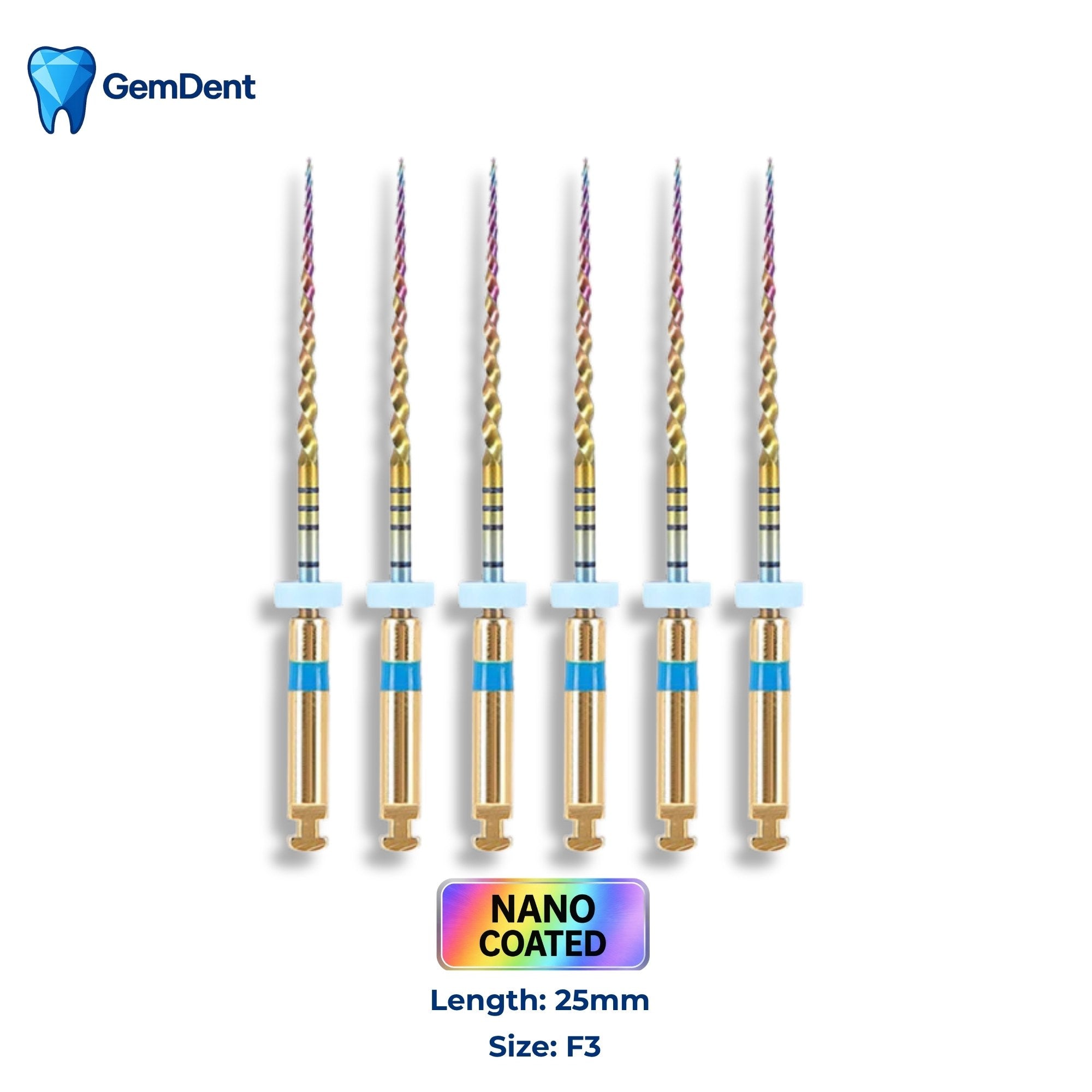

F3 (Blue): Available in 21mm & 25mm lengths.
-

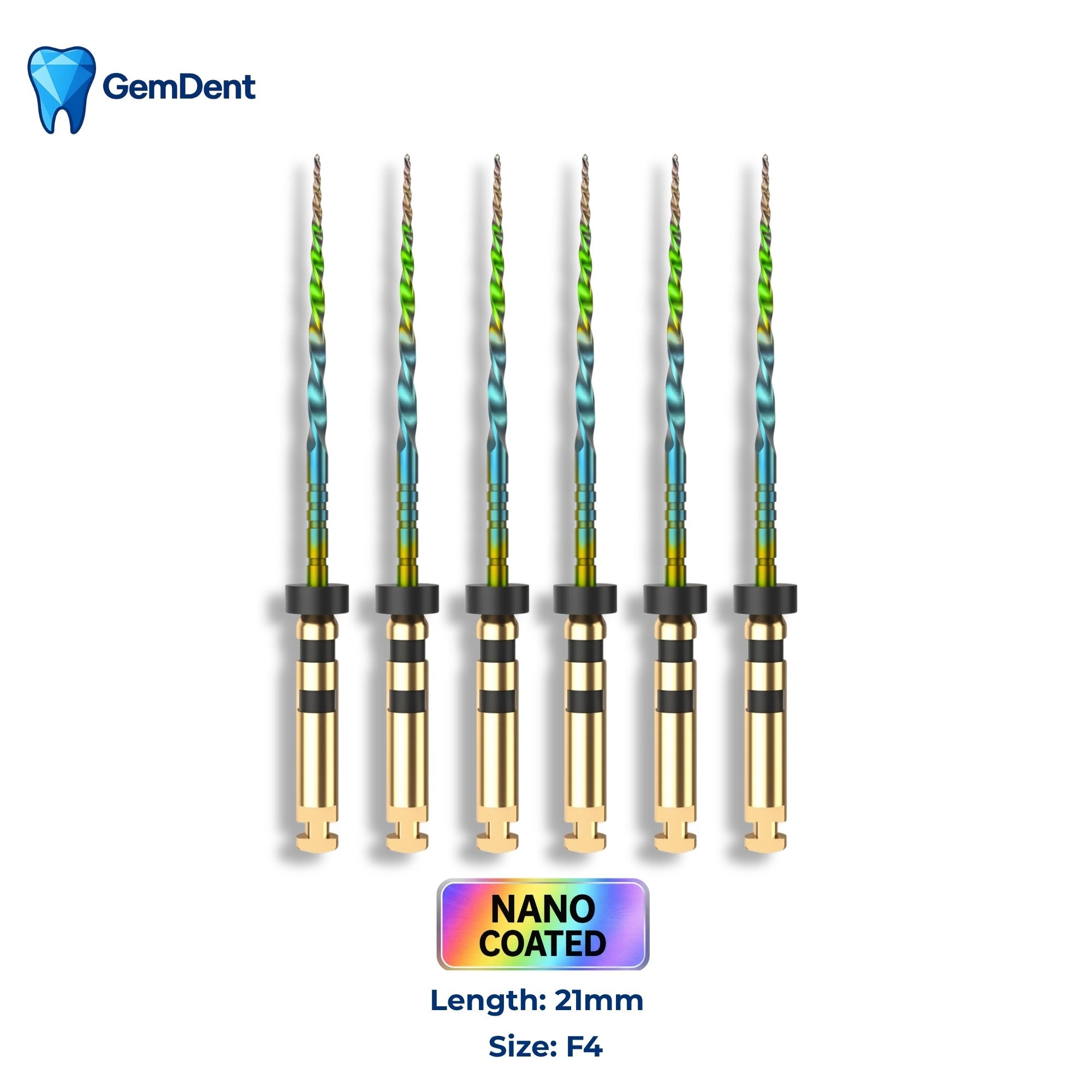

F4 (Black): Available in 21mm & 25mm lengths.
-

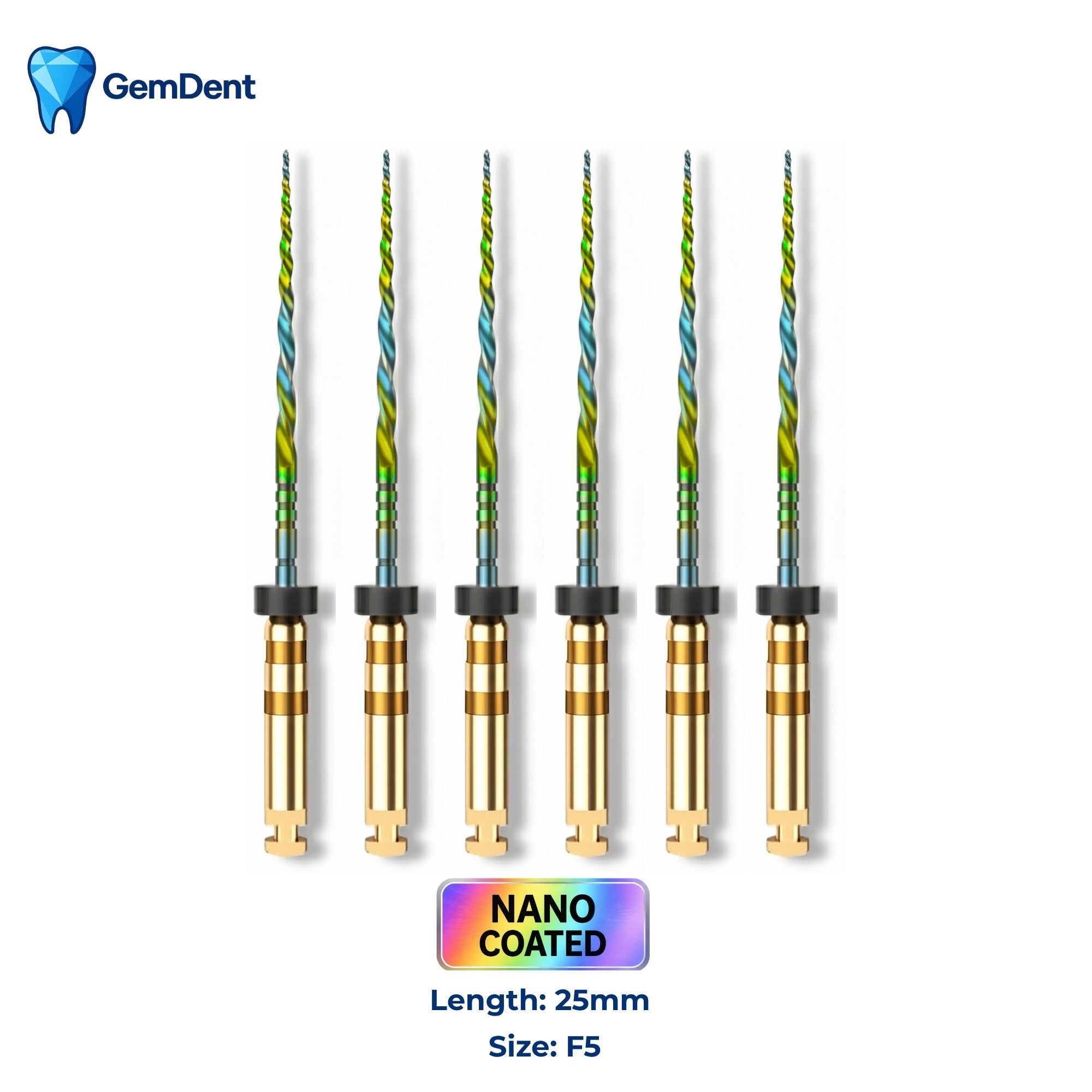

F5 (Yellow): Available in 21mm & 25mm lengths.
-
⚠️ Clinical Guidelines & Safety
Instrumentation Protocol
-
Glide Path: Establish a reproducible glide path (minimum ISO #15) prior to introducing rotary files.
-
Shaping (SX, S1, S2): Use with light lateral brushing motions on the withdrawal stroke to create coronal space.
-
Finishing (F1–F5): Passively follow the canal to working length and withdraw immediately. Do not use a brushing motion with finishing files.
-
Pressure: Apply minimal apical pressure. Never force the file; if resistance is encountered, withdraw, irrigate, and recapitulate.
Maintenance & Inspection
-
Visual Check: Clean flutes frequently. Inspect for signs of distortion, unwinding, or wear. Discard any file showing deformation immediately.
-
Chemical Exposure: Avoid prolonged immersion in high-concentration sodium hypochlorite to protect the nano-coating integrity.
-
Irrigation: Irrigate, recapitulate, and re-irrigate frequently throughout the procedure.
Patient Safety Note: This product contains Nickel-Titanium. Do not use on patients with known nickel sensitivities. Single-Use is recommended to ensure maximum surface integrity and prevent cross-contamination.
