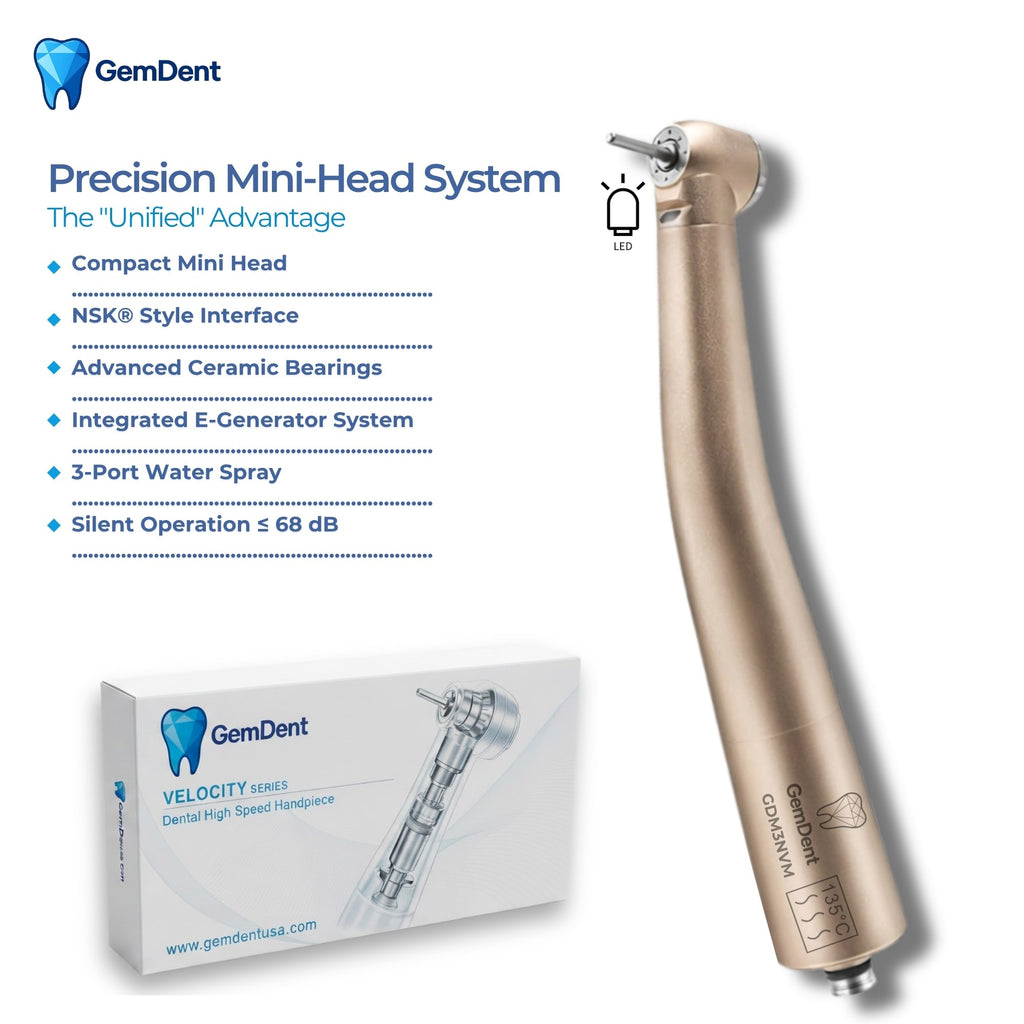

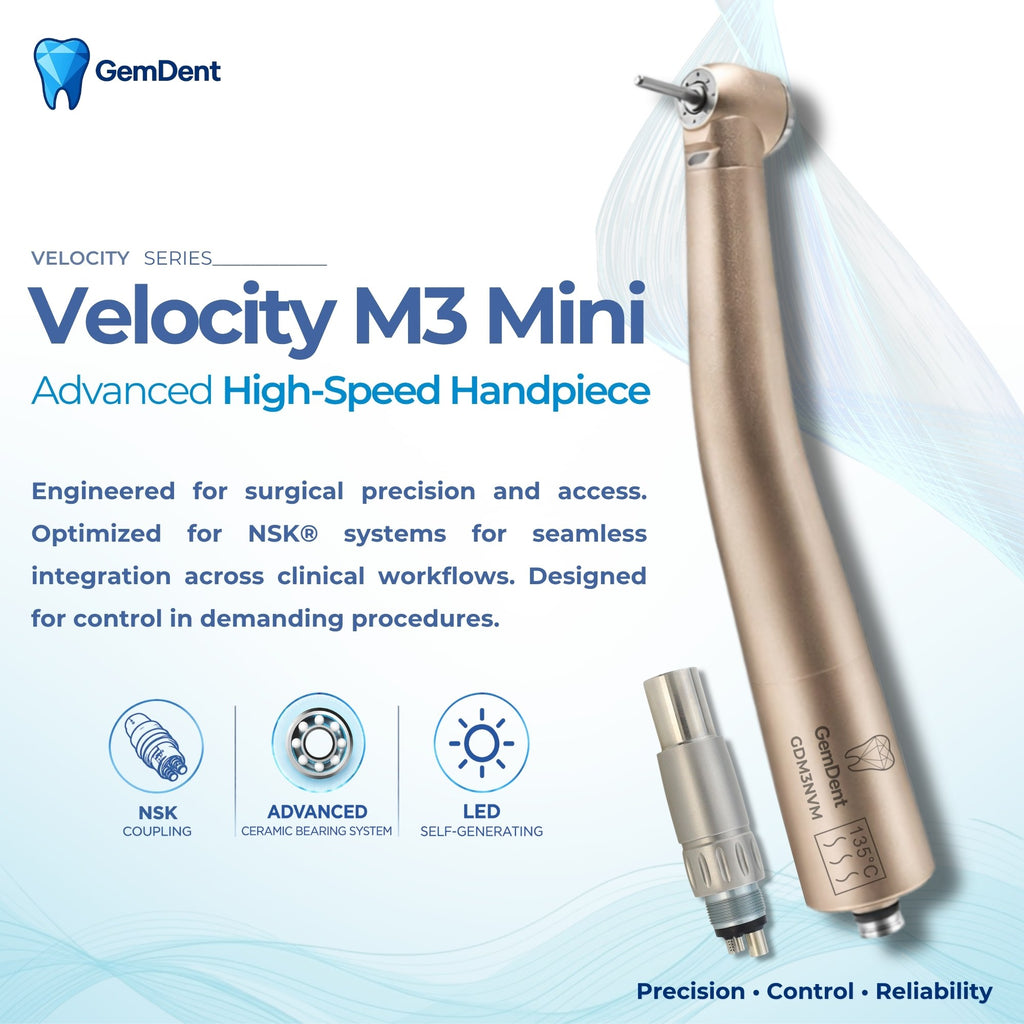

GemDent Velocity M3 NSK: Precision Mini-Head System
The GemDent Velocity M3 NSK Mini (Model: GDM3NVM) is a precision-engineered high-speed handpiece designed for cases where space is at a premium. Featuring a ultra-compact head design, it provides unrivaled maneuverability in hard-to-reach posterior regions and is the "gold standard" for pediatric and minimally invasive procedures.
As part of the GemDent Unified NSK Platform, this Mini model uses the same generator-coupler as our Standard and 45° handpieces, allowing for a seamless, cost-effective workflow across your entire operatory.
🔄 The "Unified" Advantage
-

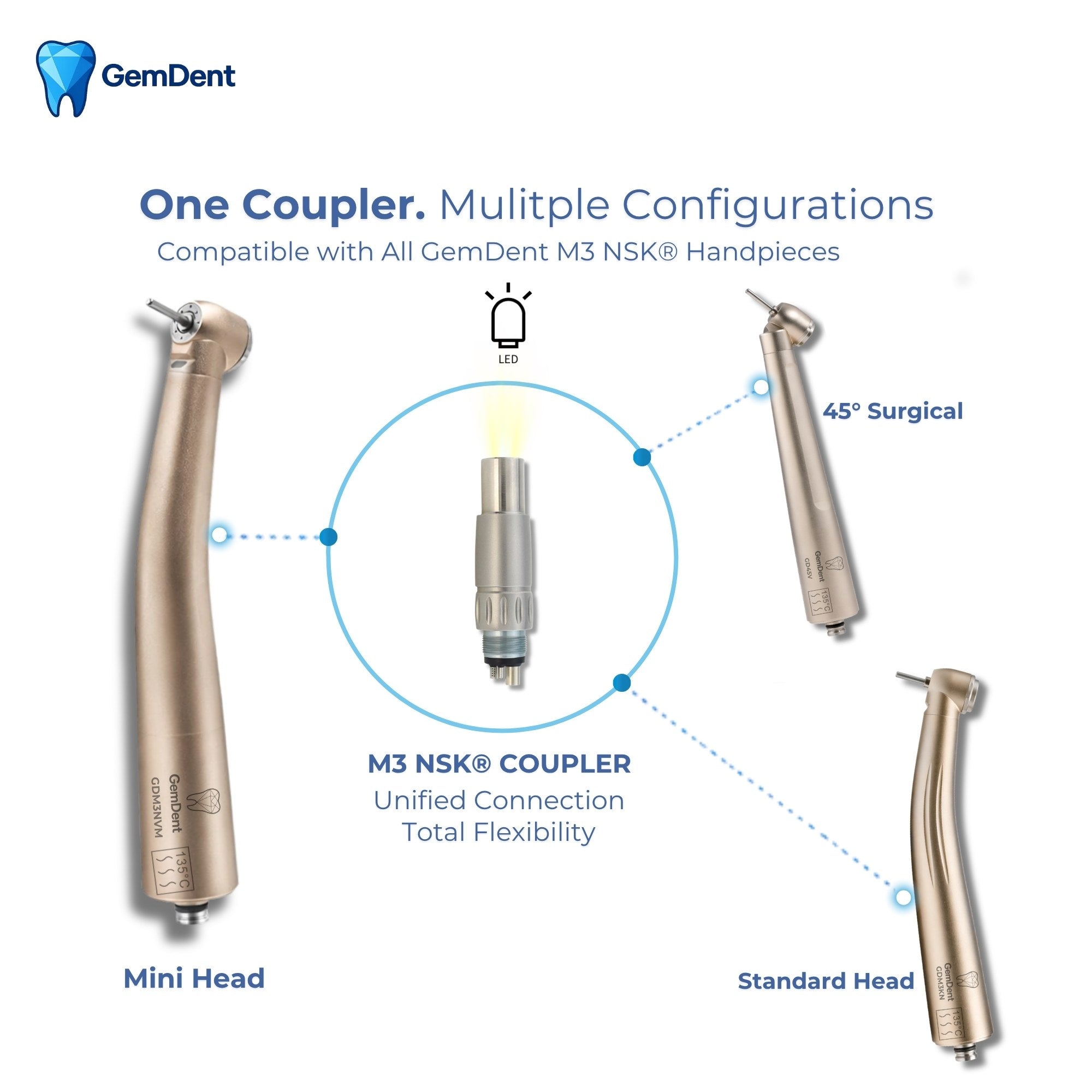

Interchangeable Coupling System: Optimized for the GemDent NSK-style quick-connect platform. Use one single coupler to switch between Standard, Mini, and 45° surgical heads in seconds.
-
Workflow Efficiency: Switch to the Mini head mid-procedure for better access without changing your coupler or tubing.
-

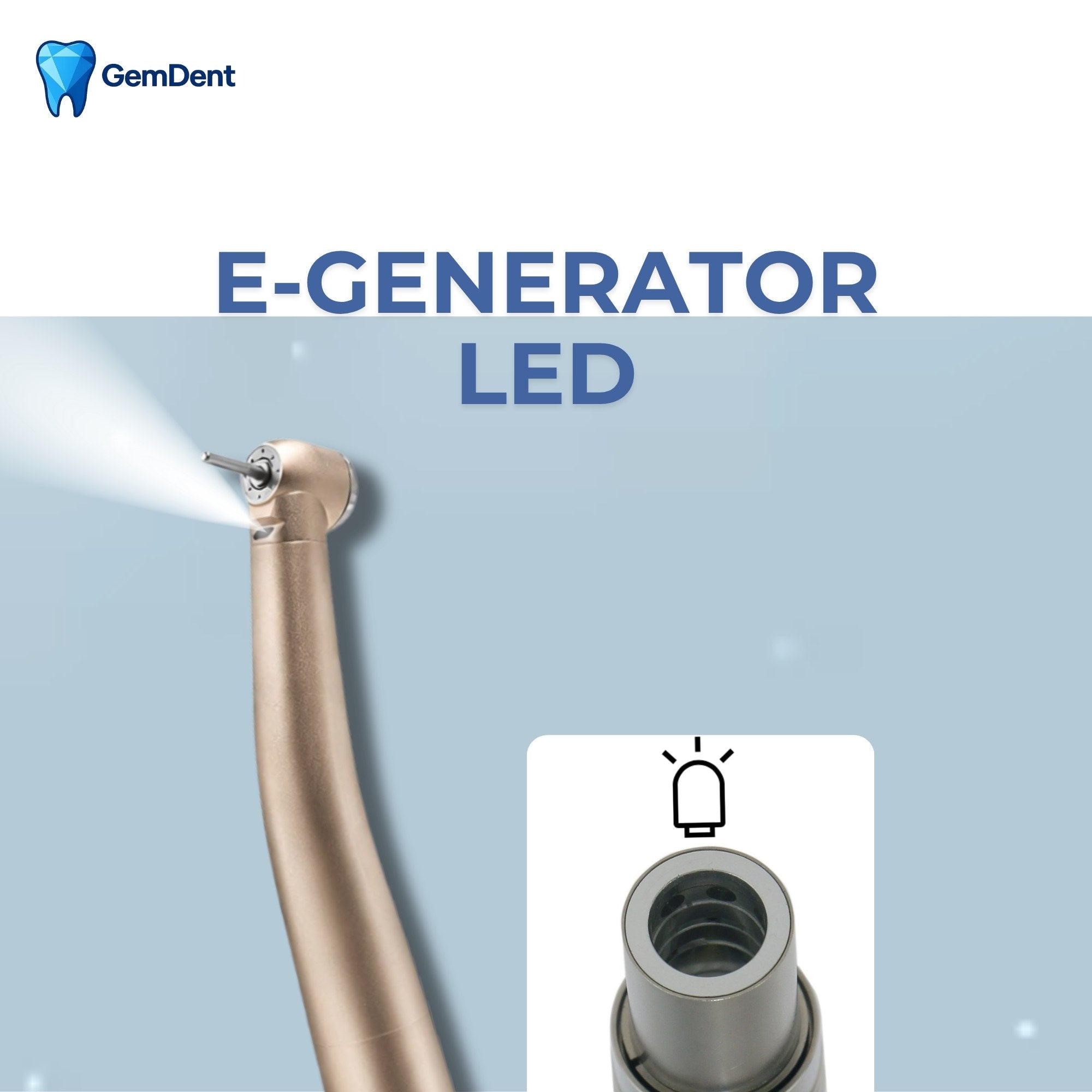

Independent LED Generation: When paired with our generator-coupler, a high-efficiency micro-turbine provides 5,500K daylight illumination on any standard 4-hole (Midwest) connection.
🔍 The "Mini" Advantage: Enhanced Access
-

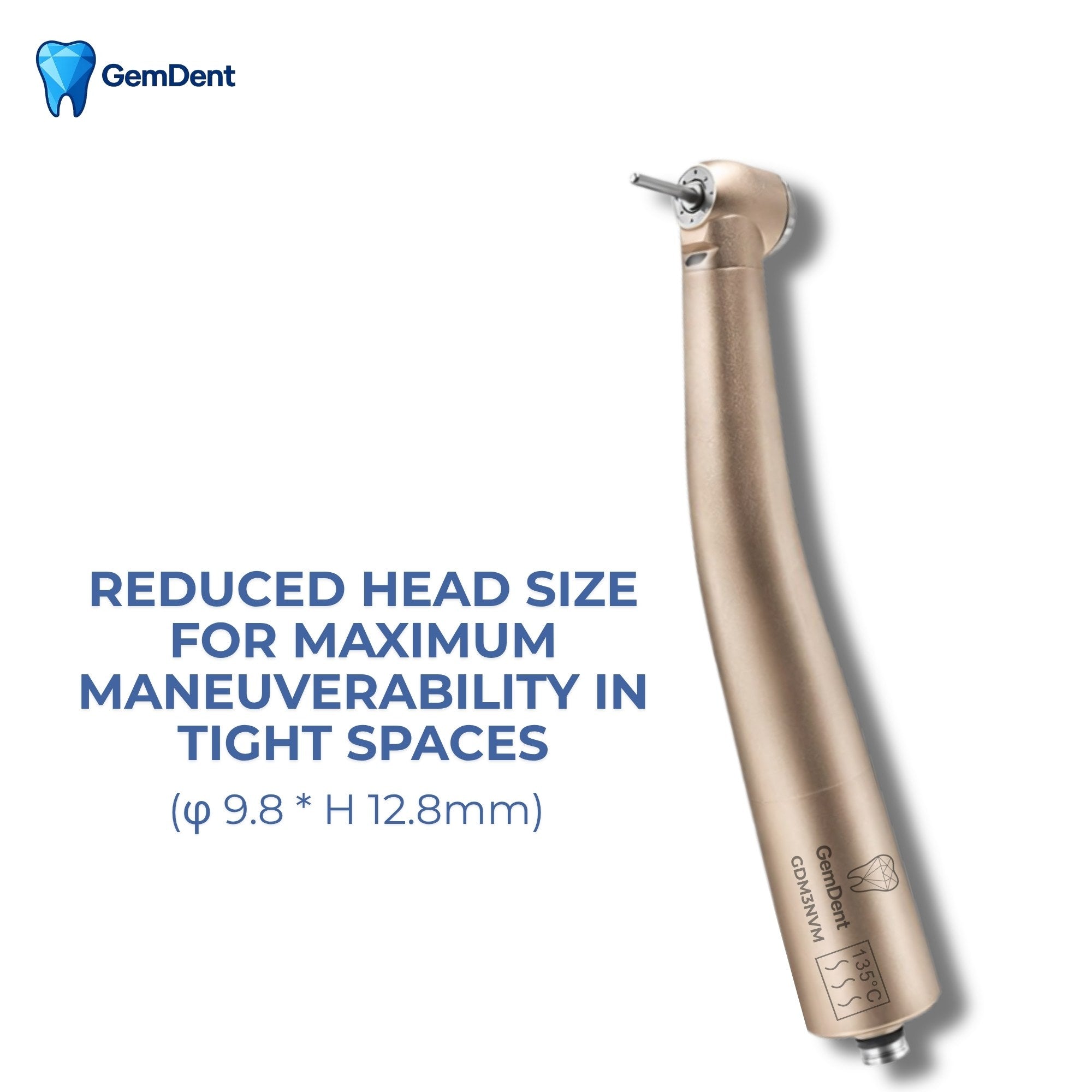

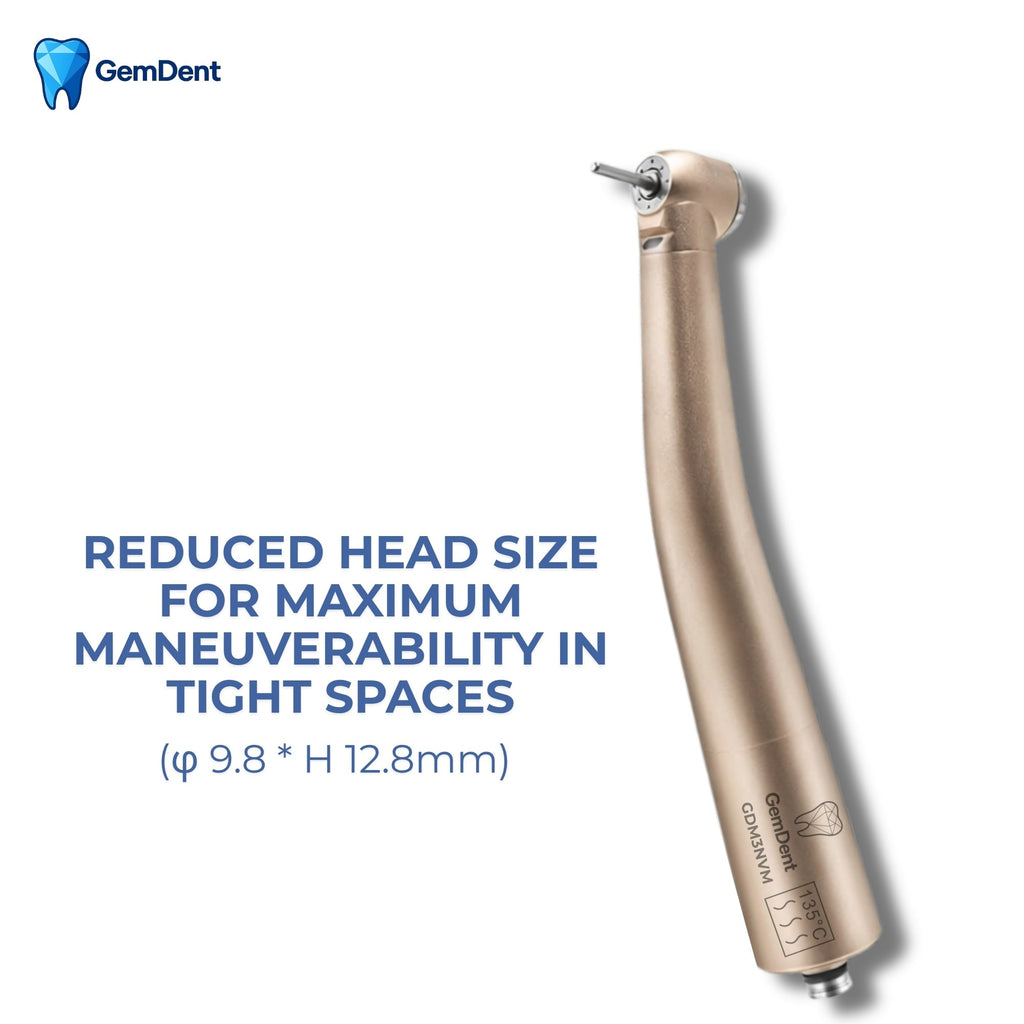

Compact Head Geometry: Reduced head height and diameter provide a clear line of sight in the most restricted posterior areas.
-
Optimized for Pediatric Dentistry: Smaller profile is less intimidating for children and perfectly sized for smaller mouths.
💎 Elite Performance Features
- Compact Mini Head: Reduced head height and diameter for maximum maneuverability in tight oral spaces and smaller mouths.

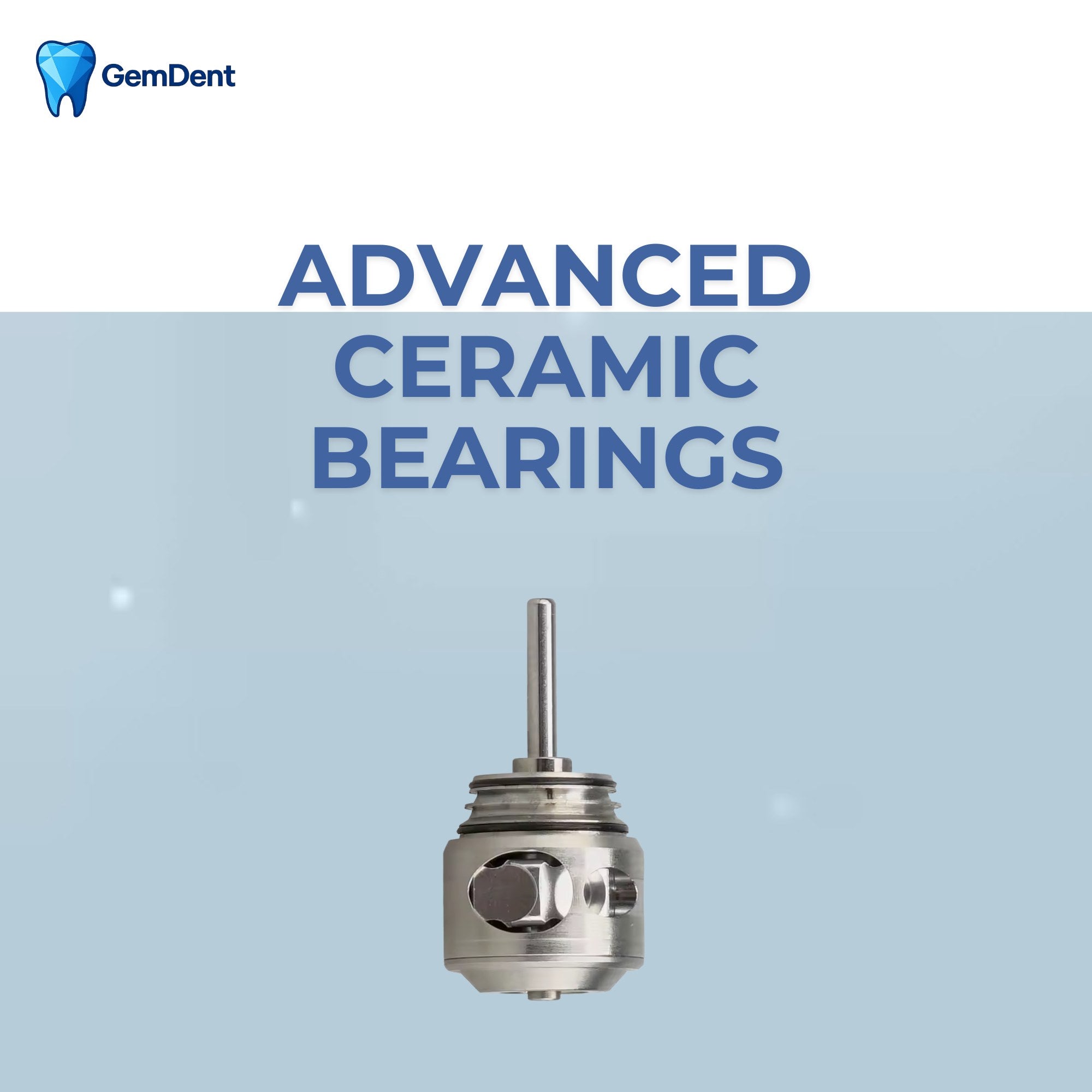

- Ultra-Premium Ceramic Bearings: Despite its small size, the Mini delivers whisper-quiet operation (≤ 68 dB) and high torque for efficient cutting.
- High-Intensity LED (via Coupler): Shadow-free, daylight-quality light focused directly on the treatment site for improved clinical outcomes.

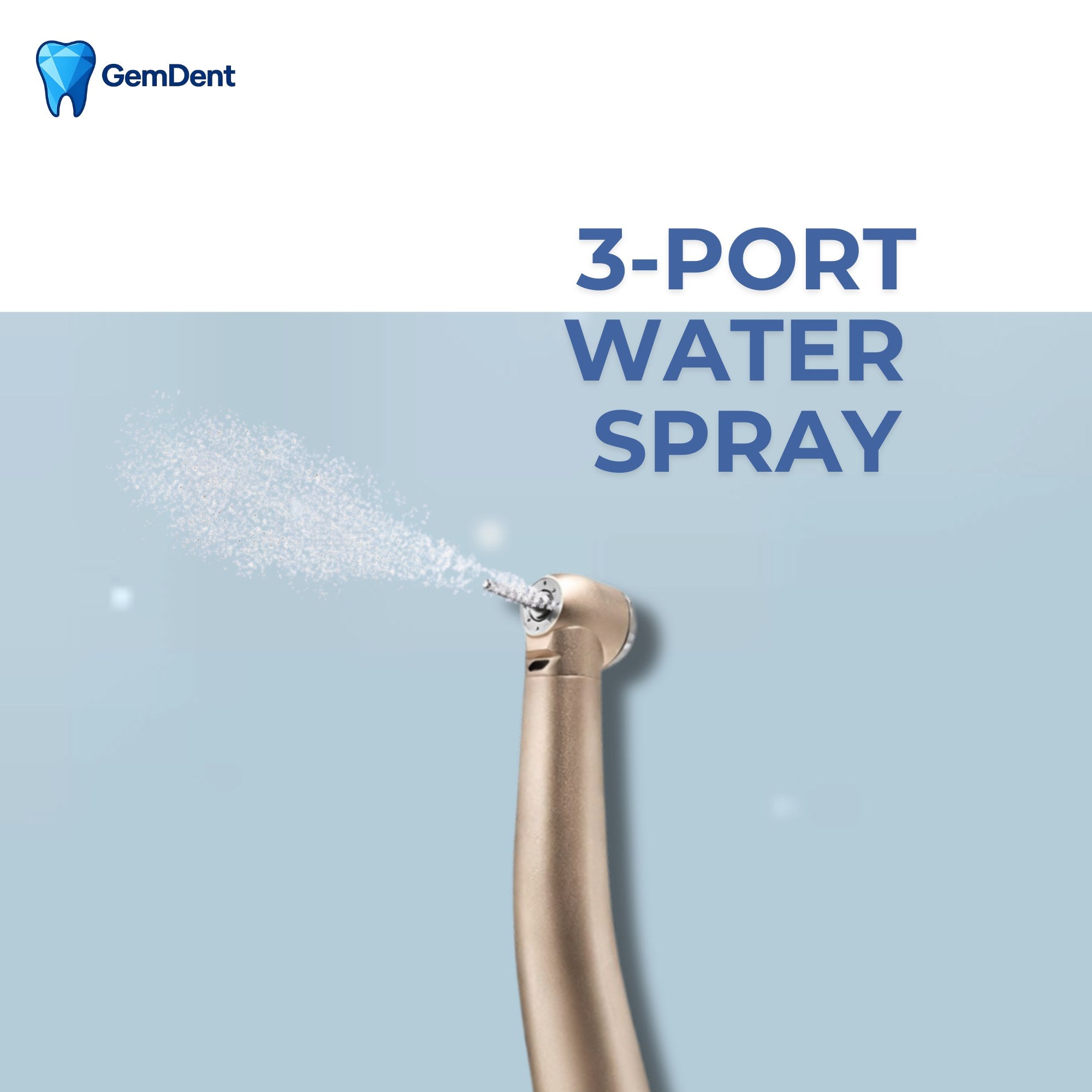

- Triple-Port Water Spray: Precision-aimed 3-port cooling system ensures the bur and tooth structure remain cool, even with the compact head design.
- High-Security Push-Button Chuck: Rapid, one-touch bur changes with a high-tension grip for absolute stability at high RPMs.
- Ergonomic Lightweight Design: Perfectly balanced to reduce hand fatigue during delicate, high-precision procedures.
📊 Technical Specifications
| Feature | Details |
| Model | GDM3NVM (Velocity M3 NSK Mini) |
| Head Type | Mini Head (Enhanced Access) |
| Light Source | LED (via Generator-Enabled Coupler) |
| Bearing Type | Ultra-Premium Ceramic |

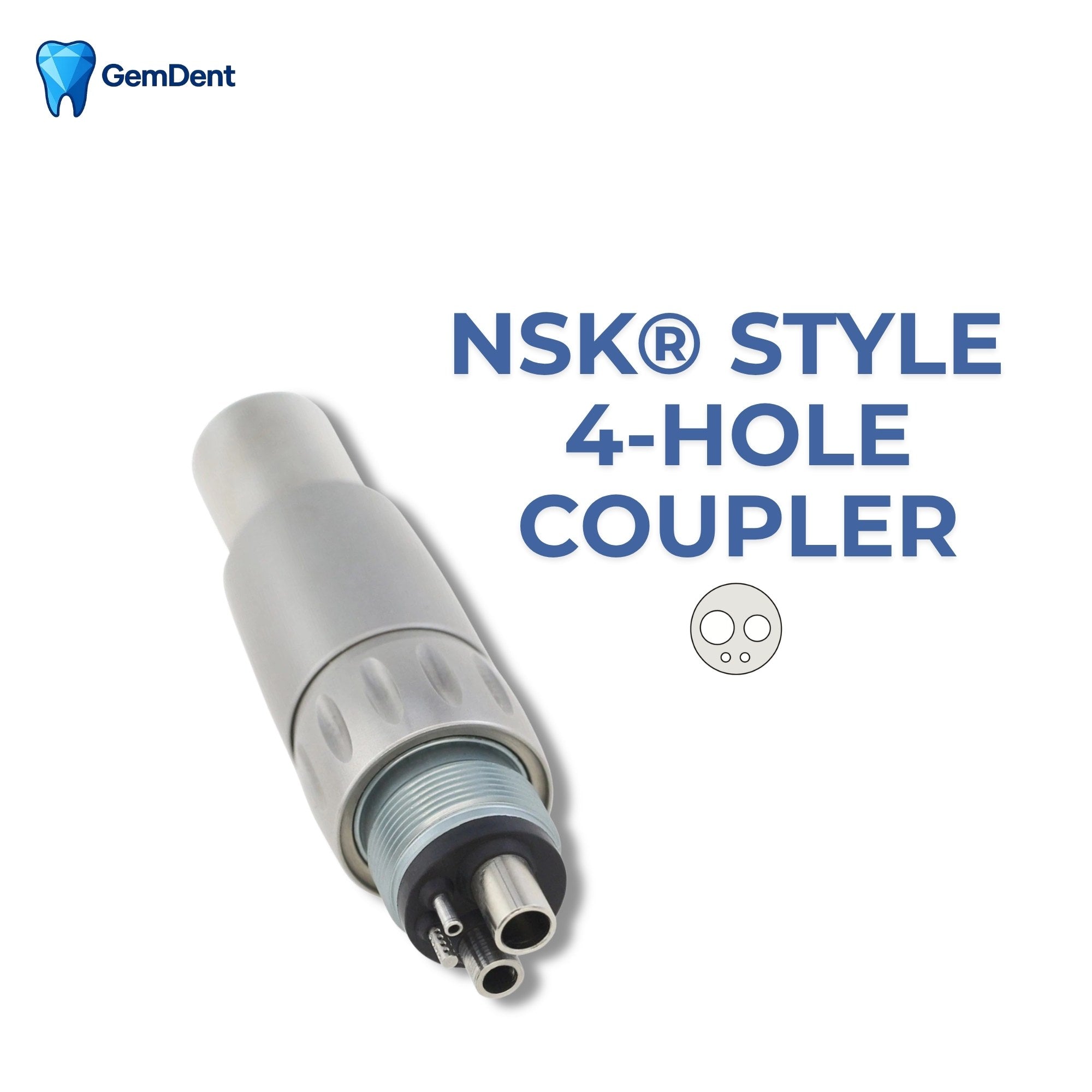

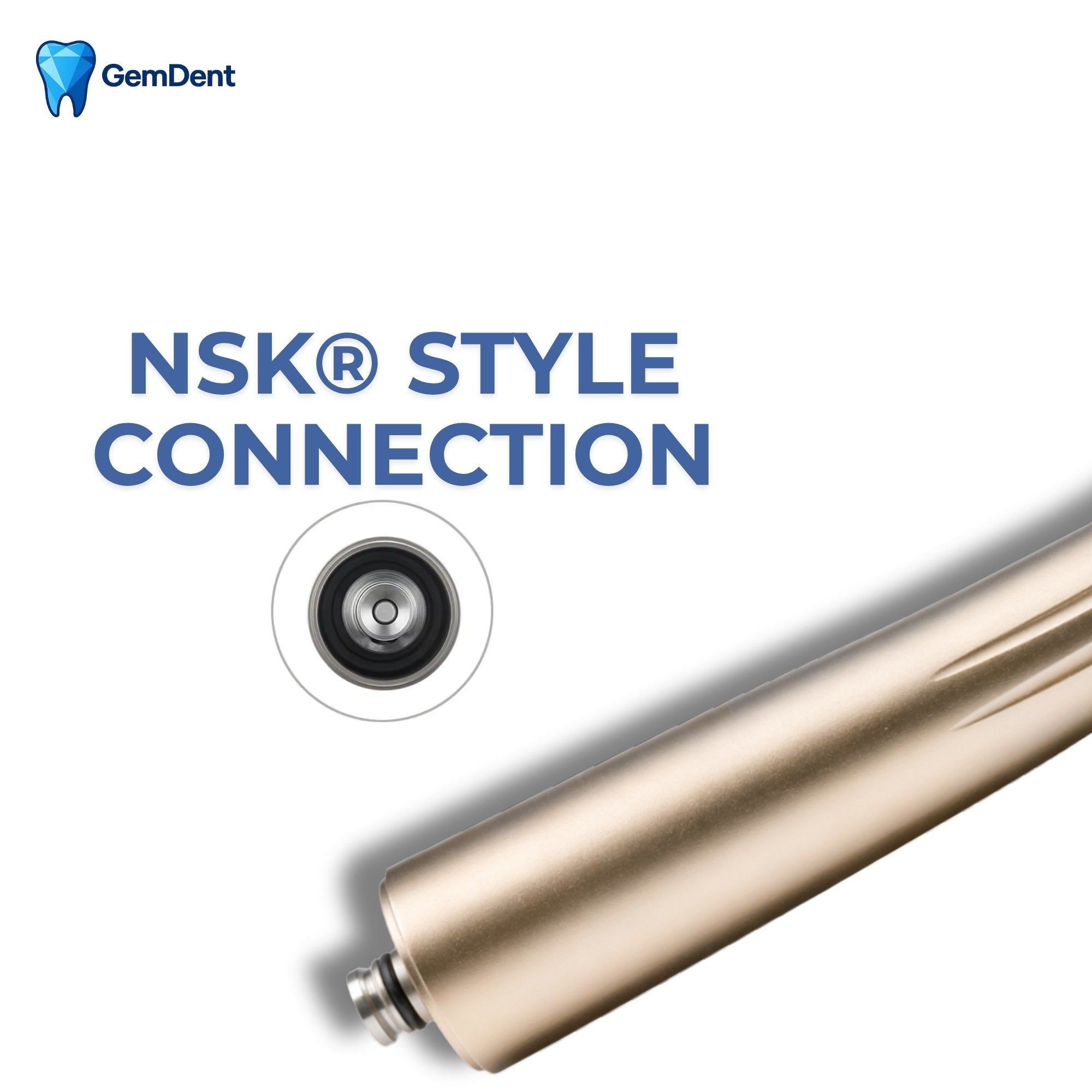

| Connection | NSK PTL-Style Compatible Coupler |
| Coolant Spray | Triple-Port (3-Way Mist) |
| Rotation Speed | 300,000 – 350,000 RPM |
| Noise Level | ≤ 68 dB |
🛠️ Specialized Applications
-
Posterior Restorations: Navigating limited inter-occlusal space in second and third molars.
-
Pediatric Care: The ideal size for primary tooth preparations.
-
Minimally Invasive Dentistry: Perfect for conservative "micro-preparations" and refined veneer work.
🔌 Universal Compatibility Check

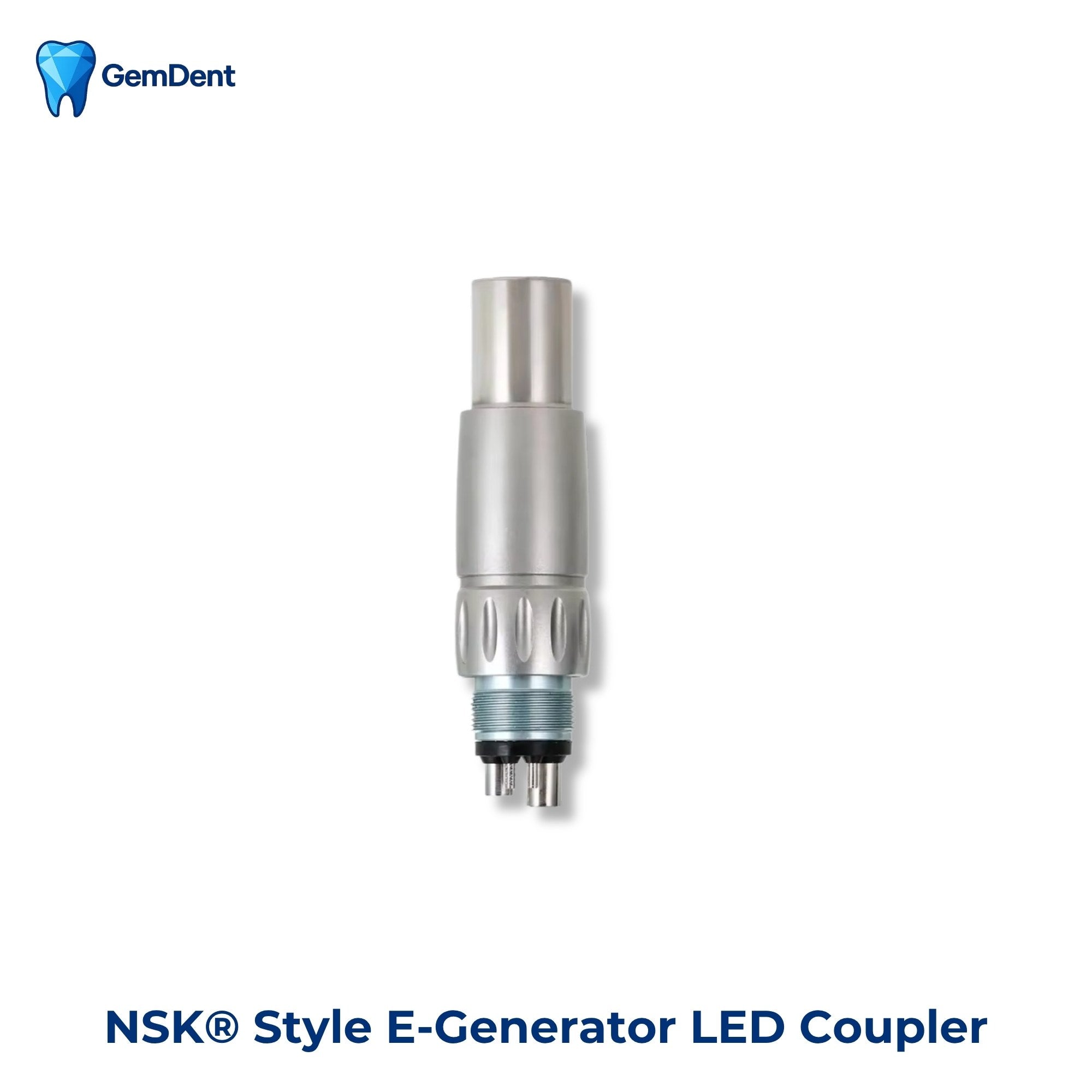

The Velocity M3 Mini NSK utilizes a modular LED system. To achieve illumination, it must be paired with a GemDent NSK-Style Generator Coupler (included in the [KIT] option).
-

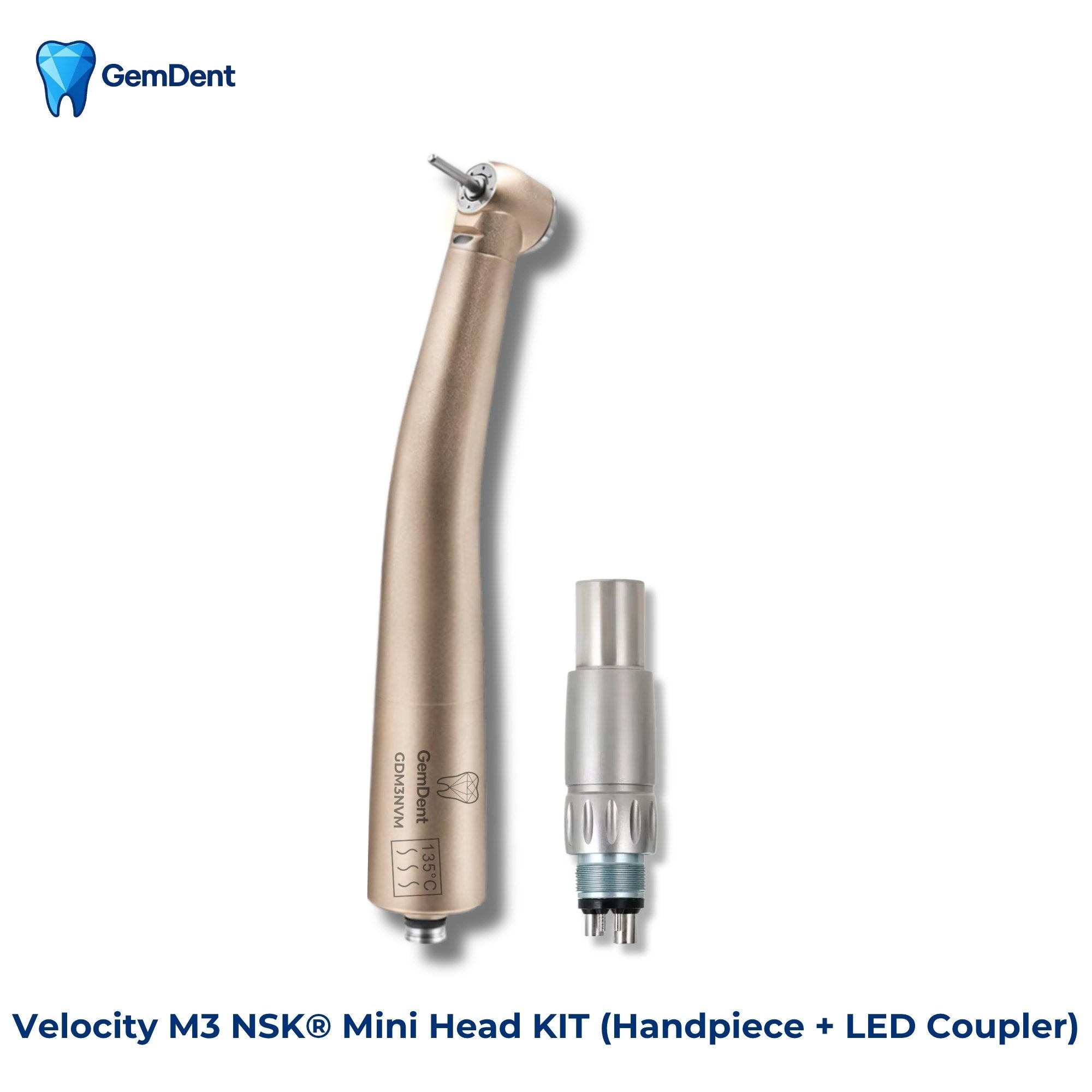

[KIT] Purchase: Includes the M3 NSK handpiece and the generator-coupler. Connects to any standard 4-hole hose for instant LED light.
-

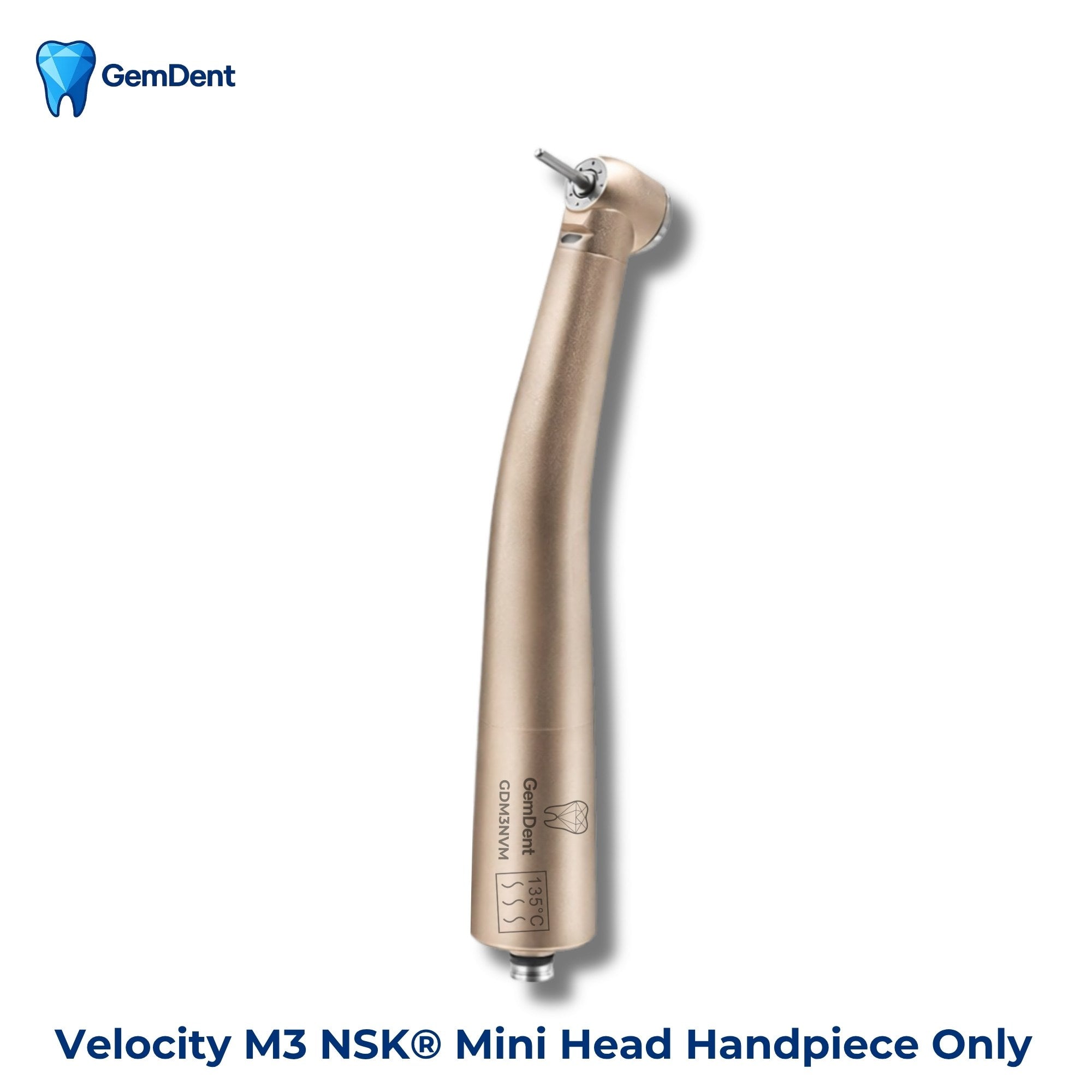

[UNIT] Purchase: Includes the M3 NSK handpiece only. Designed to fit standard NSK-style PLT couplers, but will not provide LED light unless paired with a generator-enabled model.
⚠️ If used with a standard non-light coupling, the handpiece will operate normally, but LED illumination will not function.
🛡️ Warranty
Backed by a 1-Year Limited Manufacturer Warranty for added peace of mind.
