Description

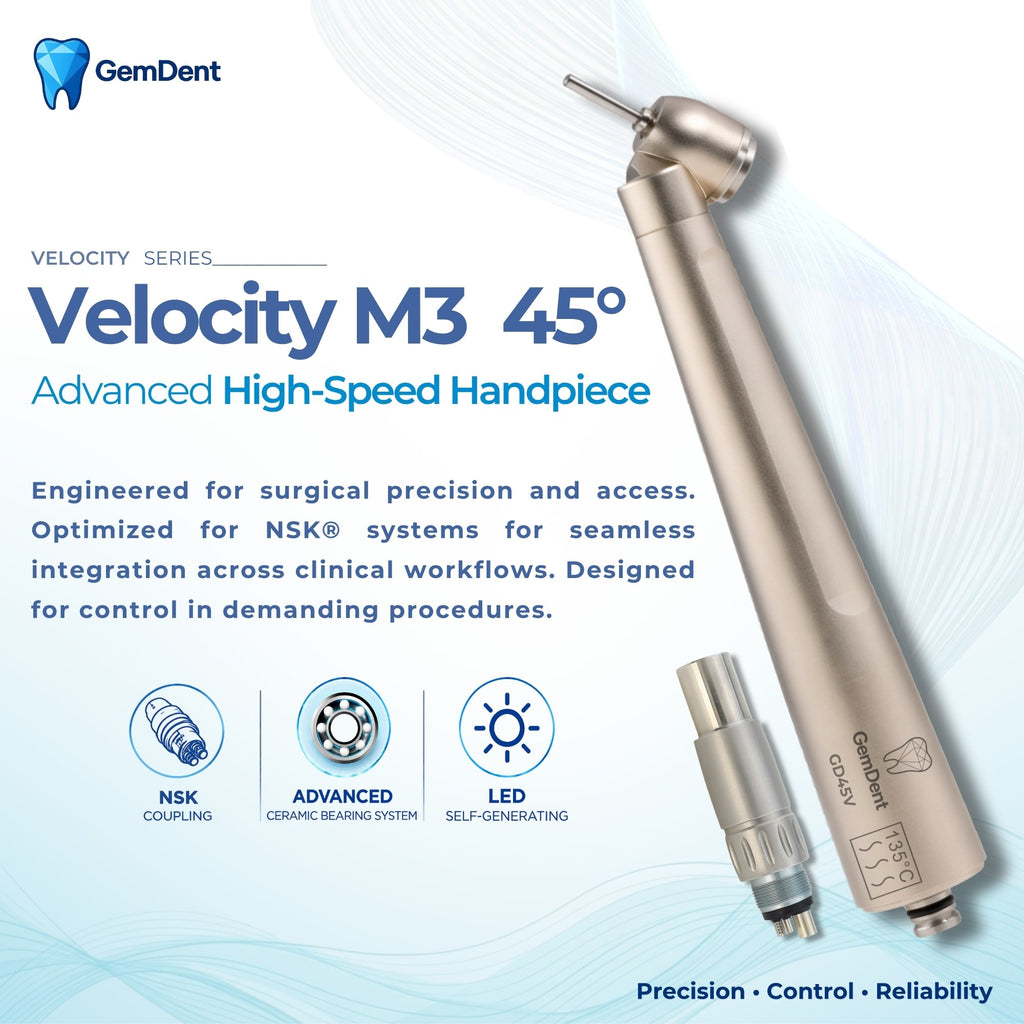

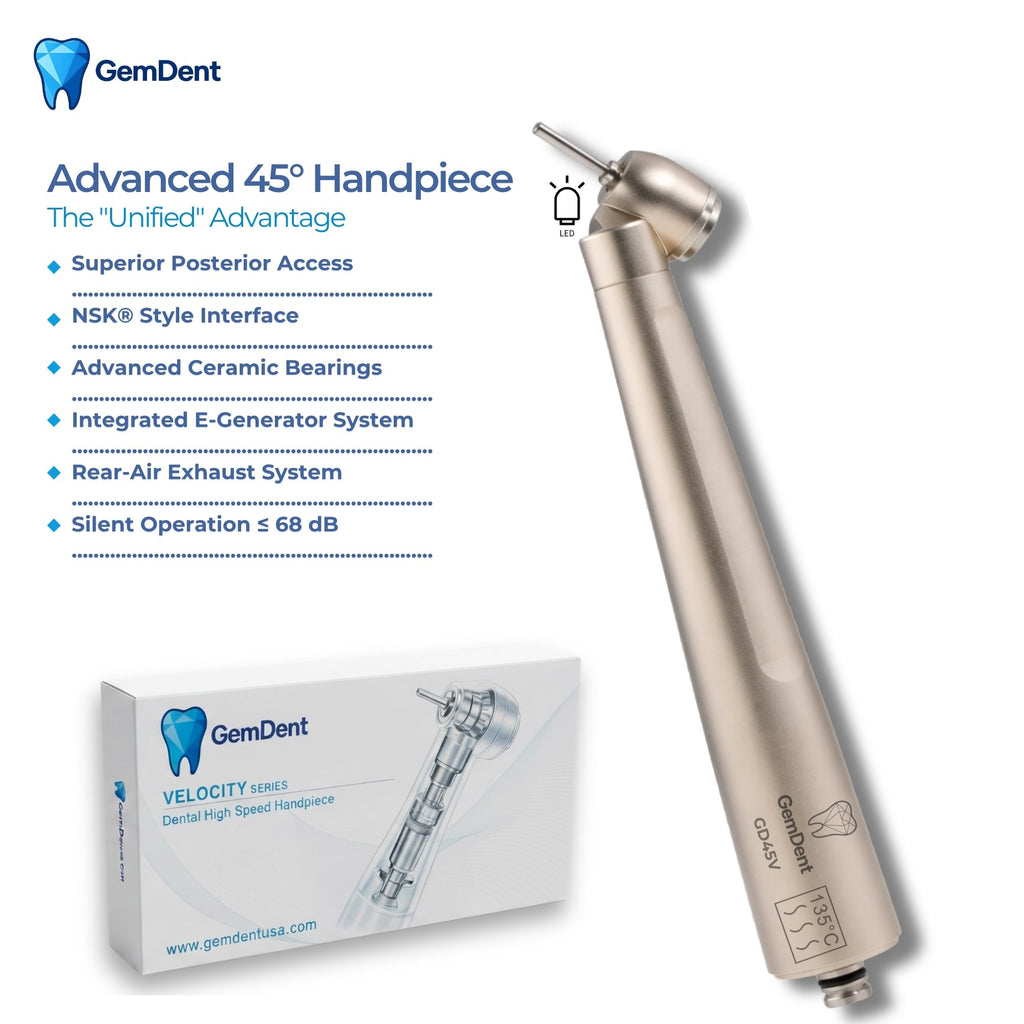

The GemDent Velocity 45° (Model: GD45V) is a high-performance surgical handpiece engineered for unrivaled access and visibility during removal of impacted third molar. Featuring a specialized 45-degree angled head, this instrument allows clinicians to navigate the most restricted posterior regions where standard handpieces are physically limited.
As part of the GemDent Unified NSK-Style Platform, this surgical model uses the same generator-coupler as our Standard and Mini handpieces, allowing you to switch from restorative to surgical modes in seconds without changing your setup.
🔄 The "Unified" Advantage
-

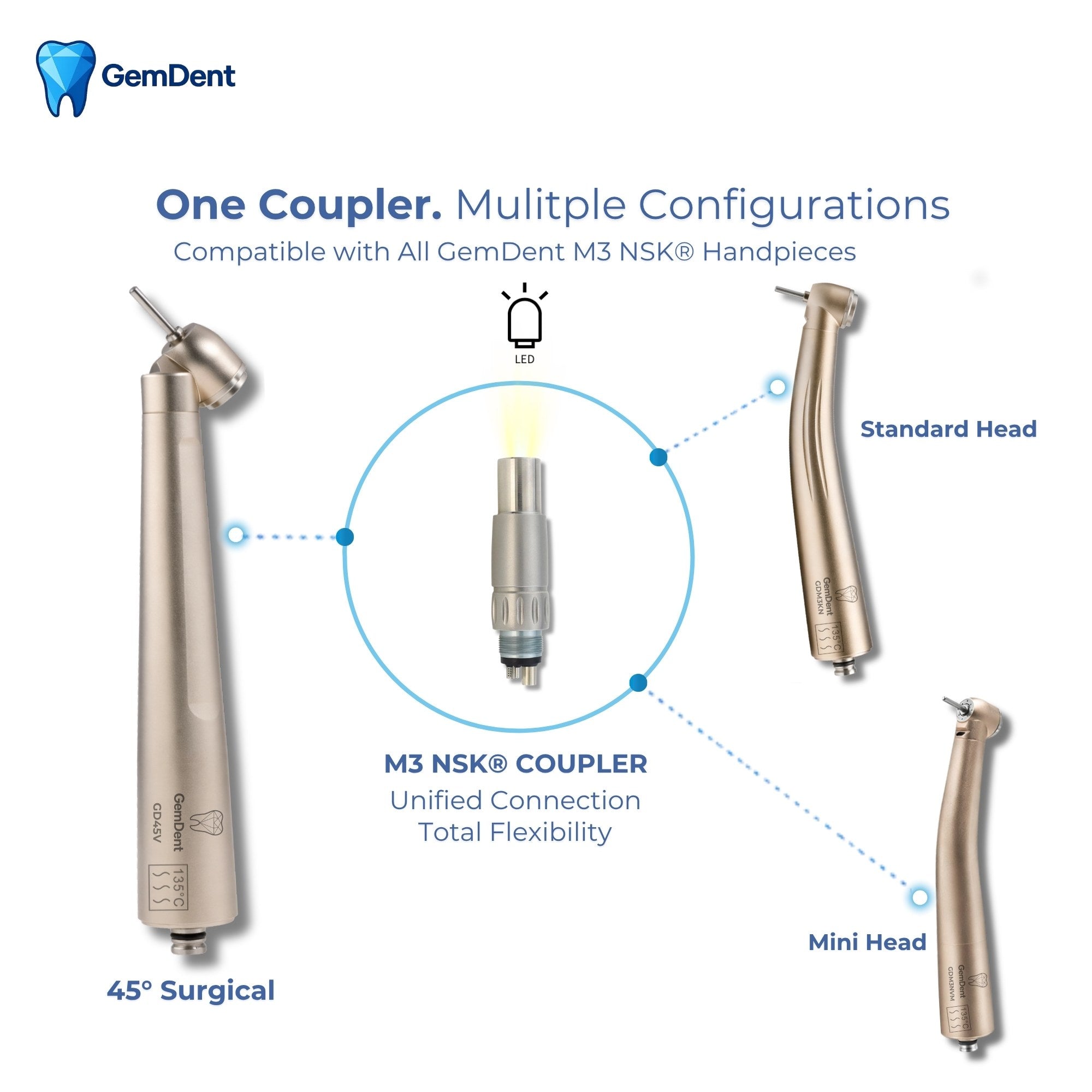

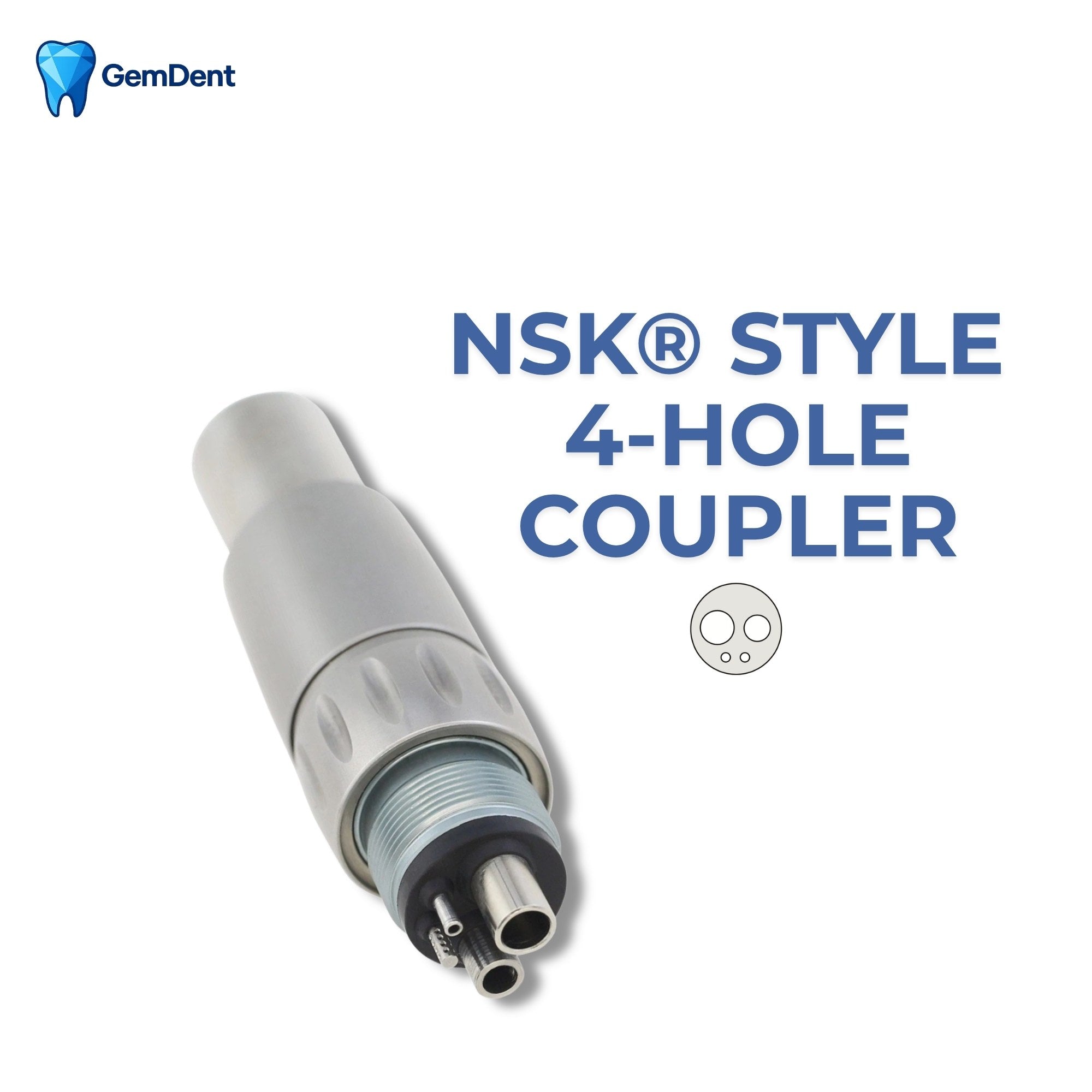

Interchangeable Coupling System: Use one single coupler to switch between Standard, Mini, and 45° surgical heads.
-
Workflow Efficiency: Transition from a standard crown prep to a surgical extraction mid-procedure without changing your 4-hole hose.
-

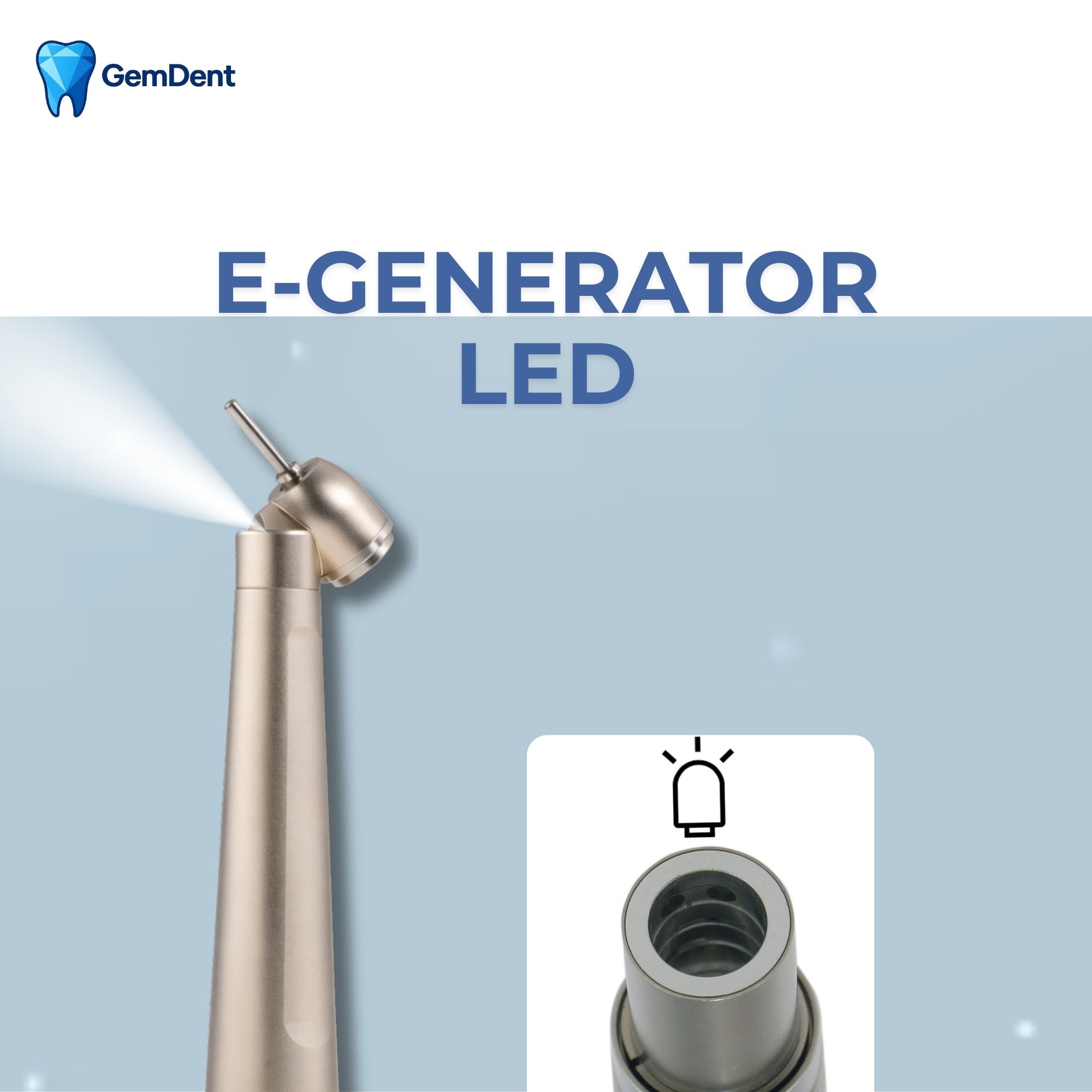

Independent LED Generation: When paired with our generator-coupler, a high-efficiency micro-turbine provides 5,500K daylight illumination—essential for deep surgical pockets.
🛡️ Surgical Safety & Performance
-
45-Degree Head Geometry: Specifically tilted to provide a clear line of sight and improved reach for third molar (wisdom tooth) extractions.
-

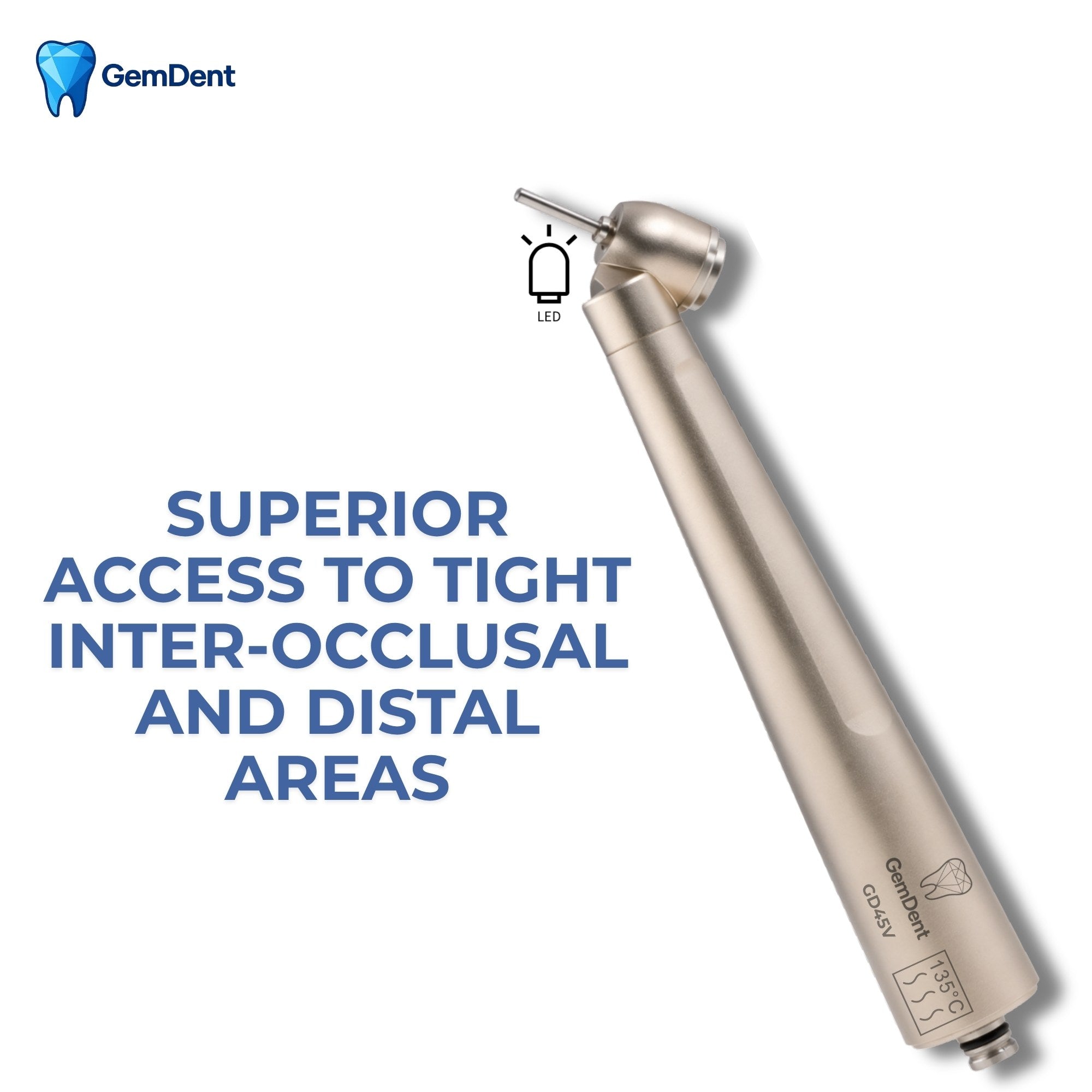

Superior Posterior Access: Effortlessly navigates tight inter-occlusal spaces and distal areas that are inaccessible to 90-degree handpieces.
-
Rear-Air Exhaust System: Engineered to vent air out the back of the handpiece rather than into the surgical site, significantly reducing the risk of surgical emphysema.
-

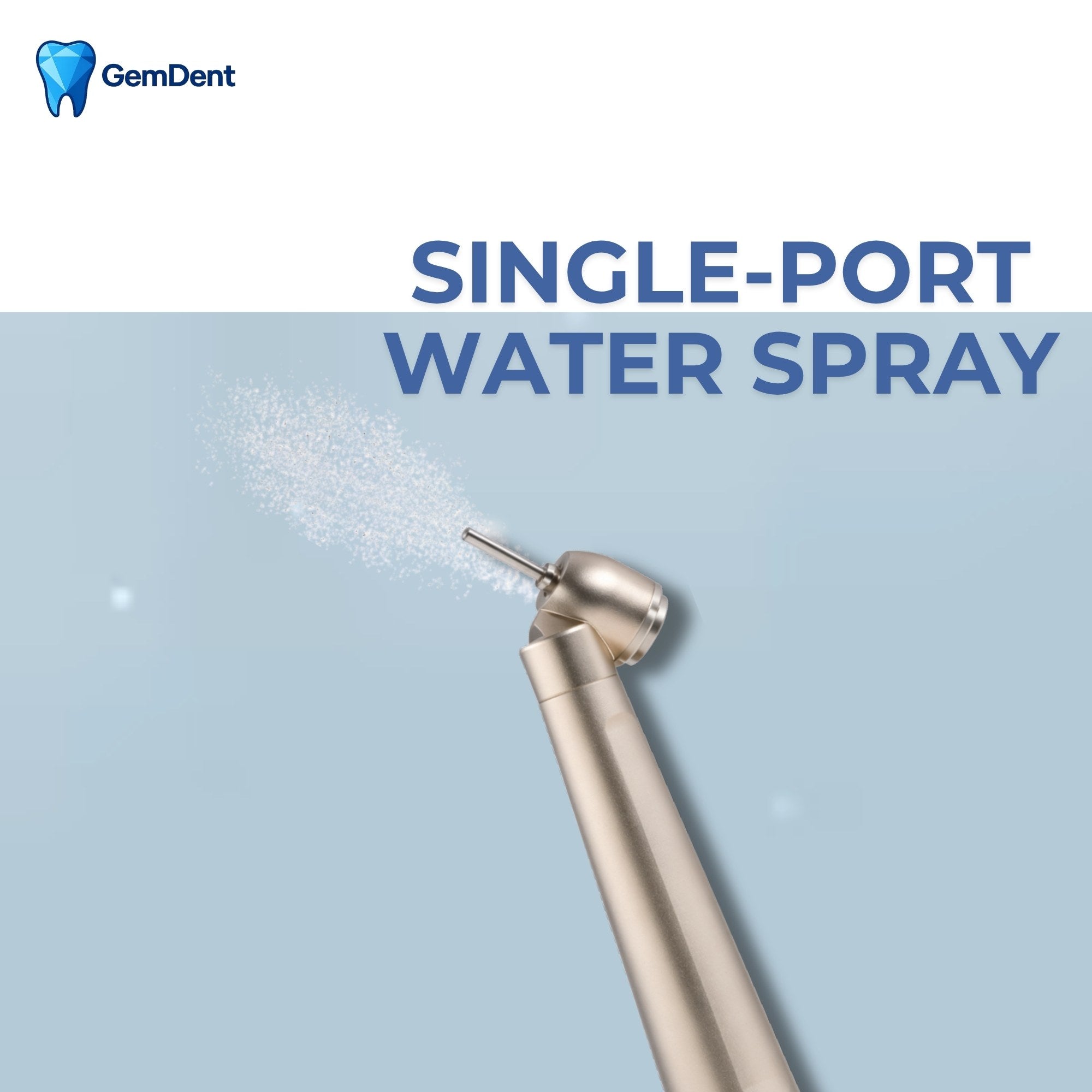

Pure Water Jet (No Air): Delivers a direct stream of water to the bur without compressed air, ensuring a clear and safe surgical field.
-

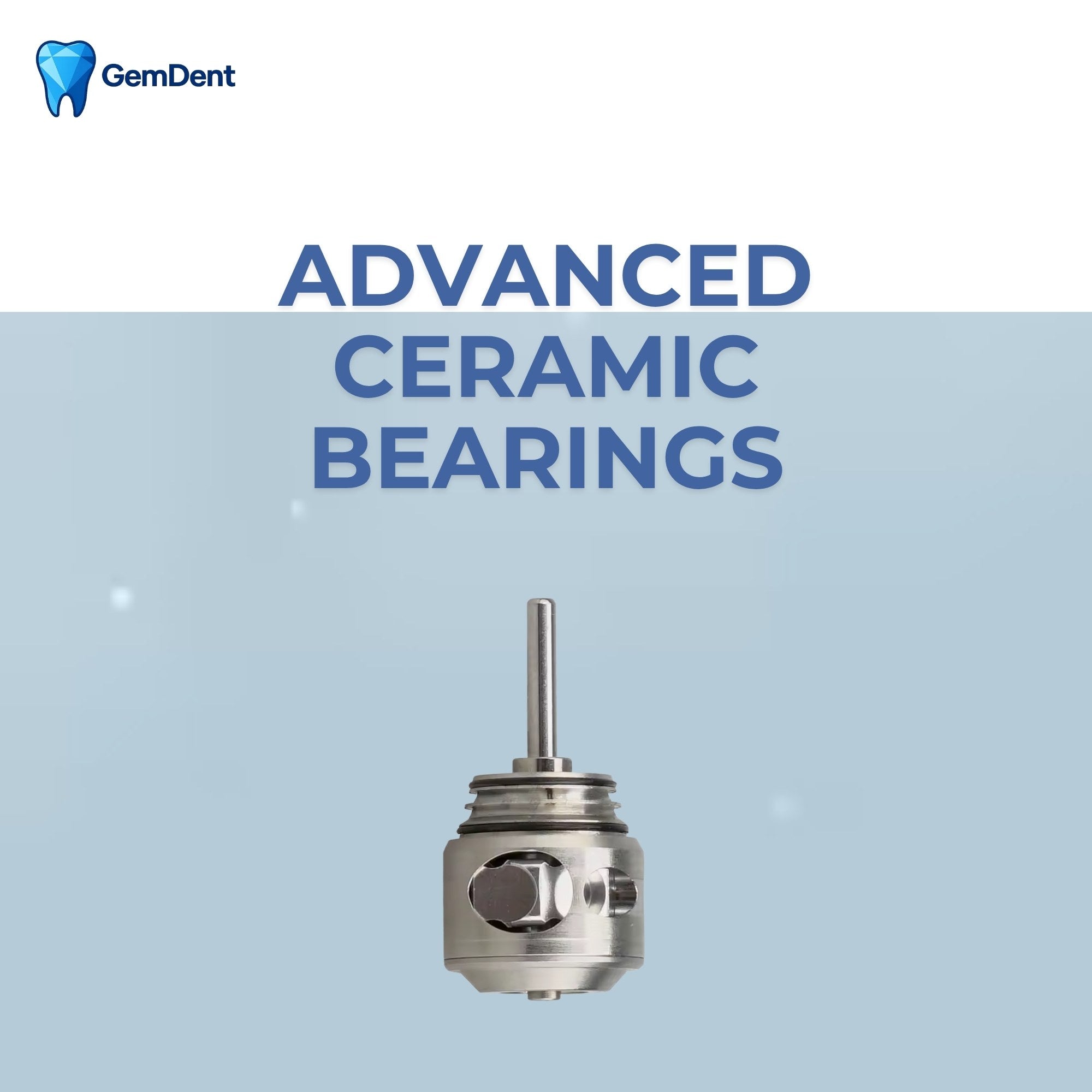

Ultra-Premium Ceramic Bearings: Designed for high-torque surgical cutting with minimal vibration and whisper-quiet operation (≤ 68 dB).
-
Push-Button Chuck: Securely holds extra-long surgical burs even under high-load conditions.
-
Ergonomic Surgical Balance: The angled body is weighted for precision handling, giving the surgeon better "feel" and control during delicate bone removal.
📊 Technical Specifications
| Feature | Details |
| Model | GD45V (Velocity NSK 45° Surgical) |
| Head Angle | 45° Surgical Head |
| Light Source | LED (via Generator-Enabled Coupler) |
| Exhaust Design | Rear-Venting (Anti-Emphysema) |
| Bearing Type | Ultra-Premium Ceramic |
| Coolant Spray | Single-Port Water Jet (No Air) |

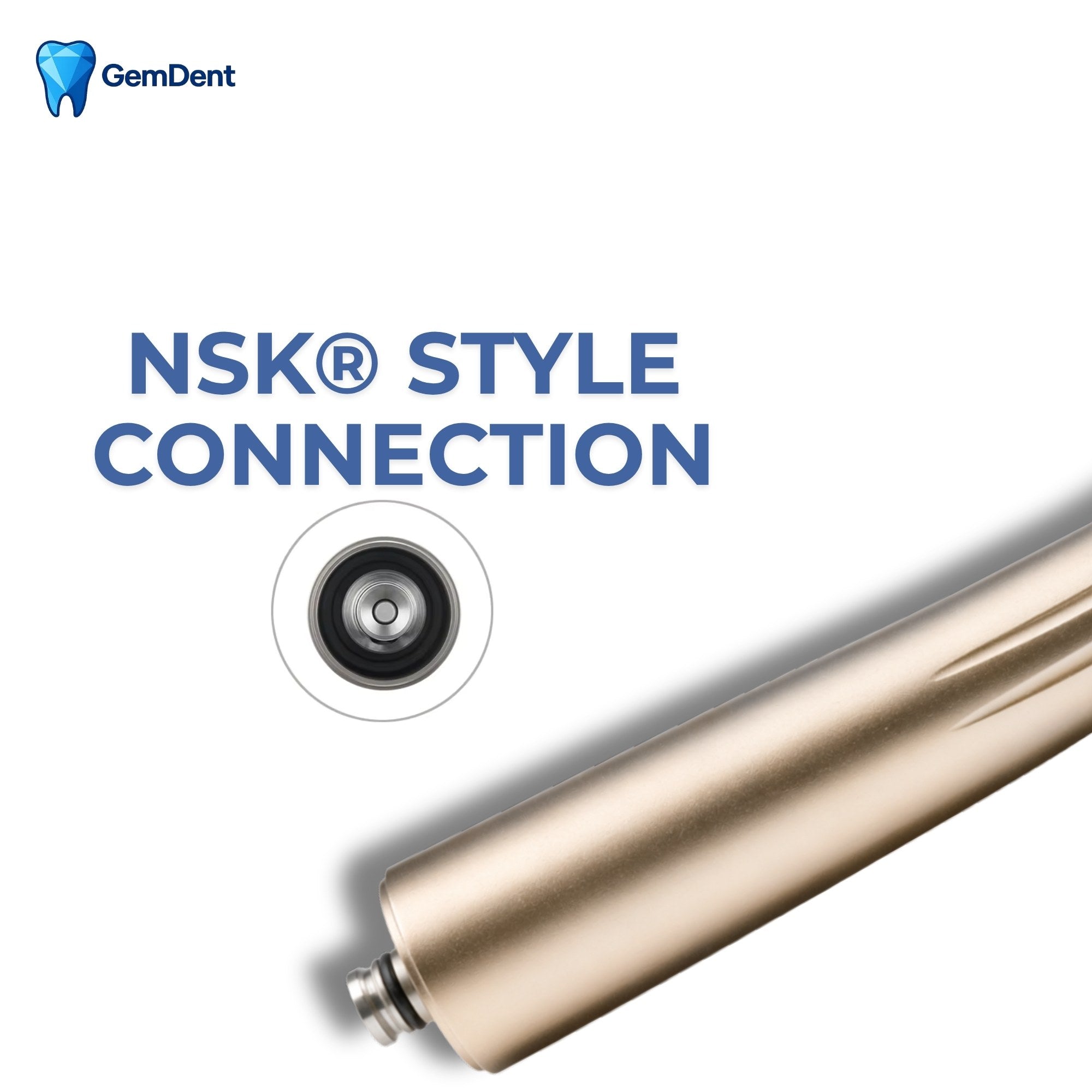

| Connection | NSK PTL-Style Compatible |
| Rotation Speed | 300,000 – 350,000 RPM |
| Noise Level | ≤ 68 dB |
🛠️ Specialized Applications
-
Third Molar Extractions: Ideal for sectioning impacted wisdom teeth.
-
Surgical Access: Gaining visibility in deep, restricted, or distal areas.
-
Advanced Clinical Workflows: Perfect for clinicians performing minor oral surgery and complex endodontic access.
🔌 Universal Compatibility Check

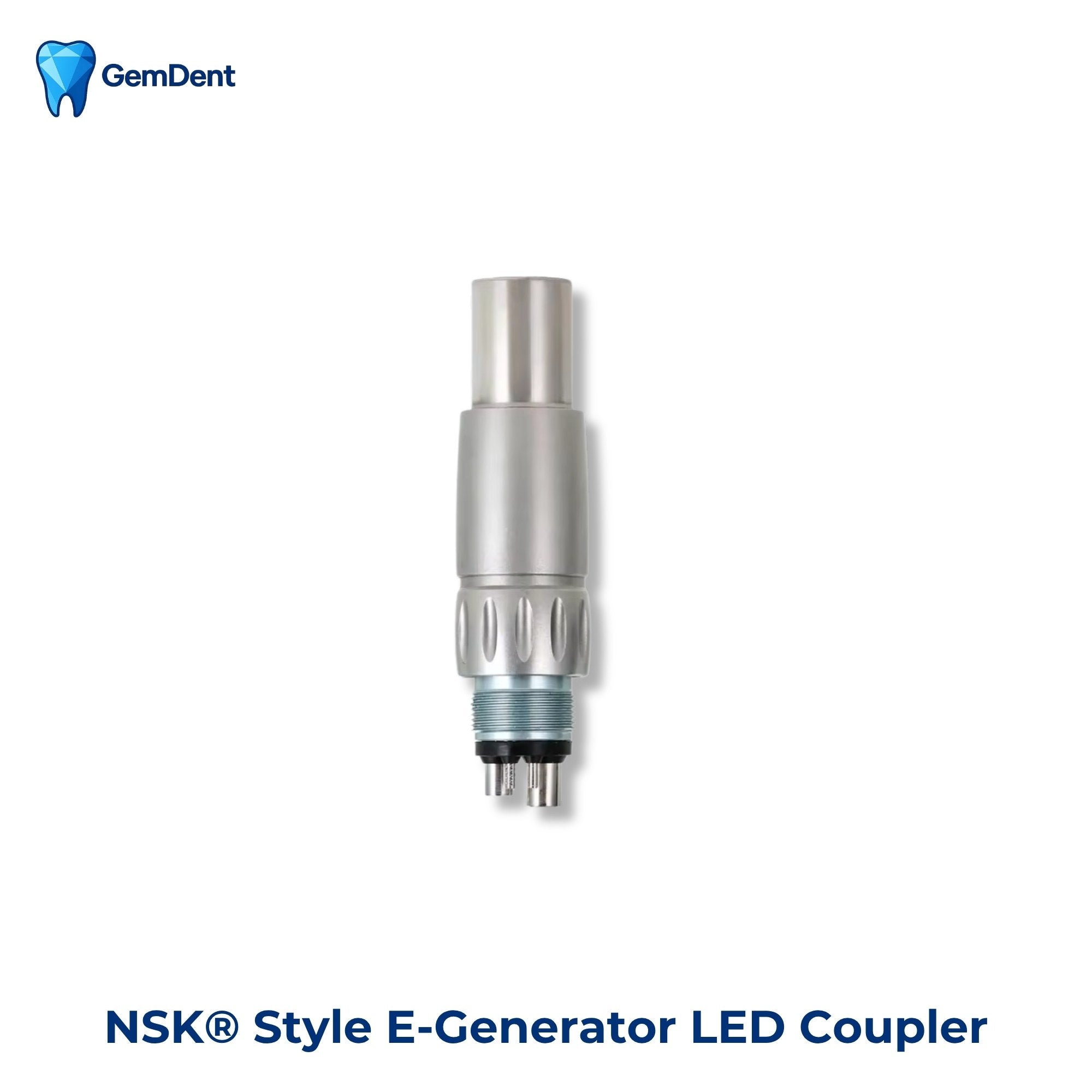

The Velocity 45° NSK utilizes a modular LED system. To achieve illumination, it must be paired with a GemDent NSK-Style Generator Coupler (included in the [KIT] option).
-

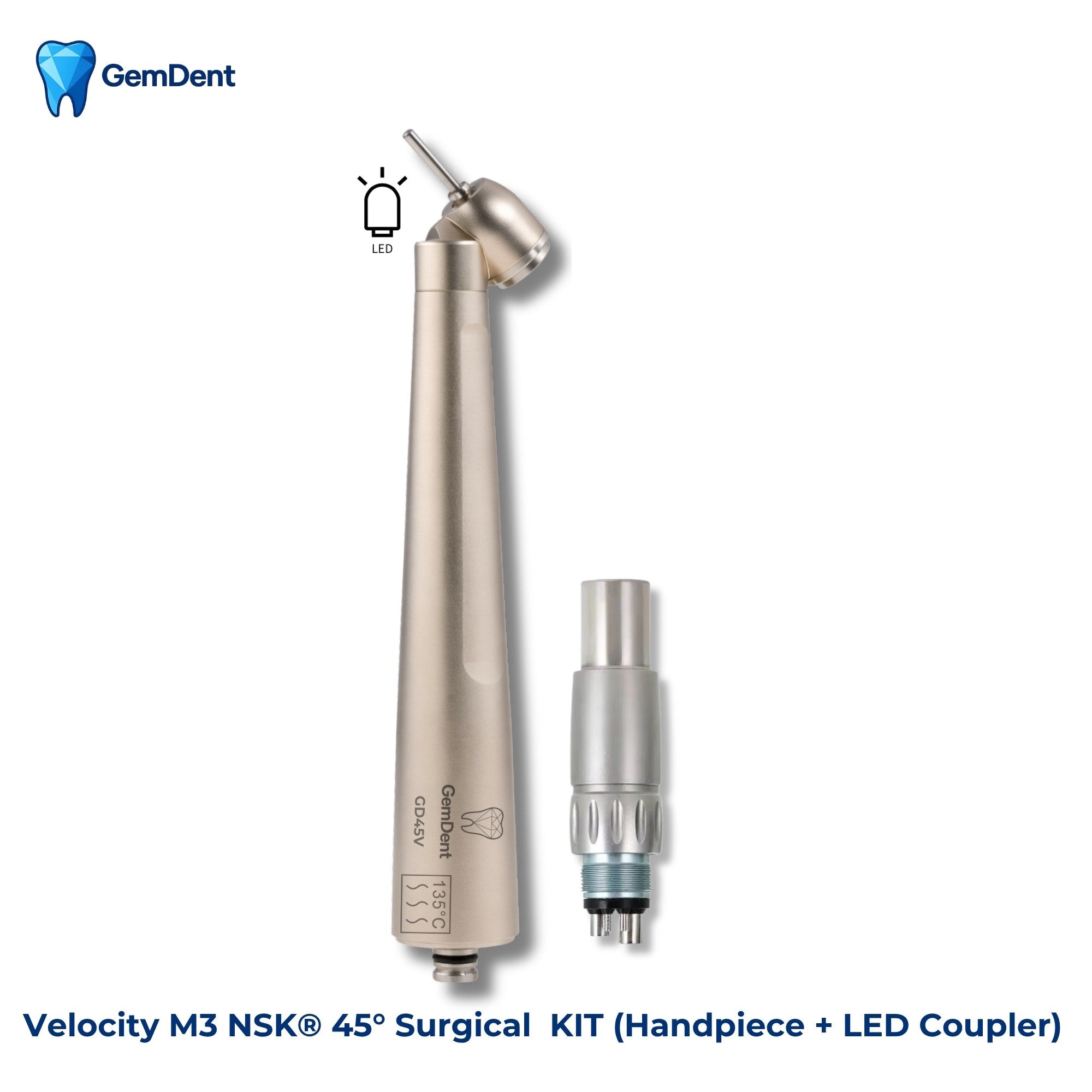

[KIT] Purchase: Includes the M3 NSK handpiece and the generator-coupler. Connects to any standard 4-hole hose for instant LED light.
-

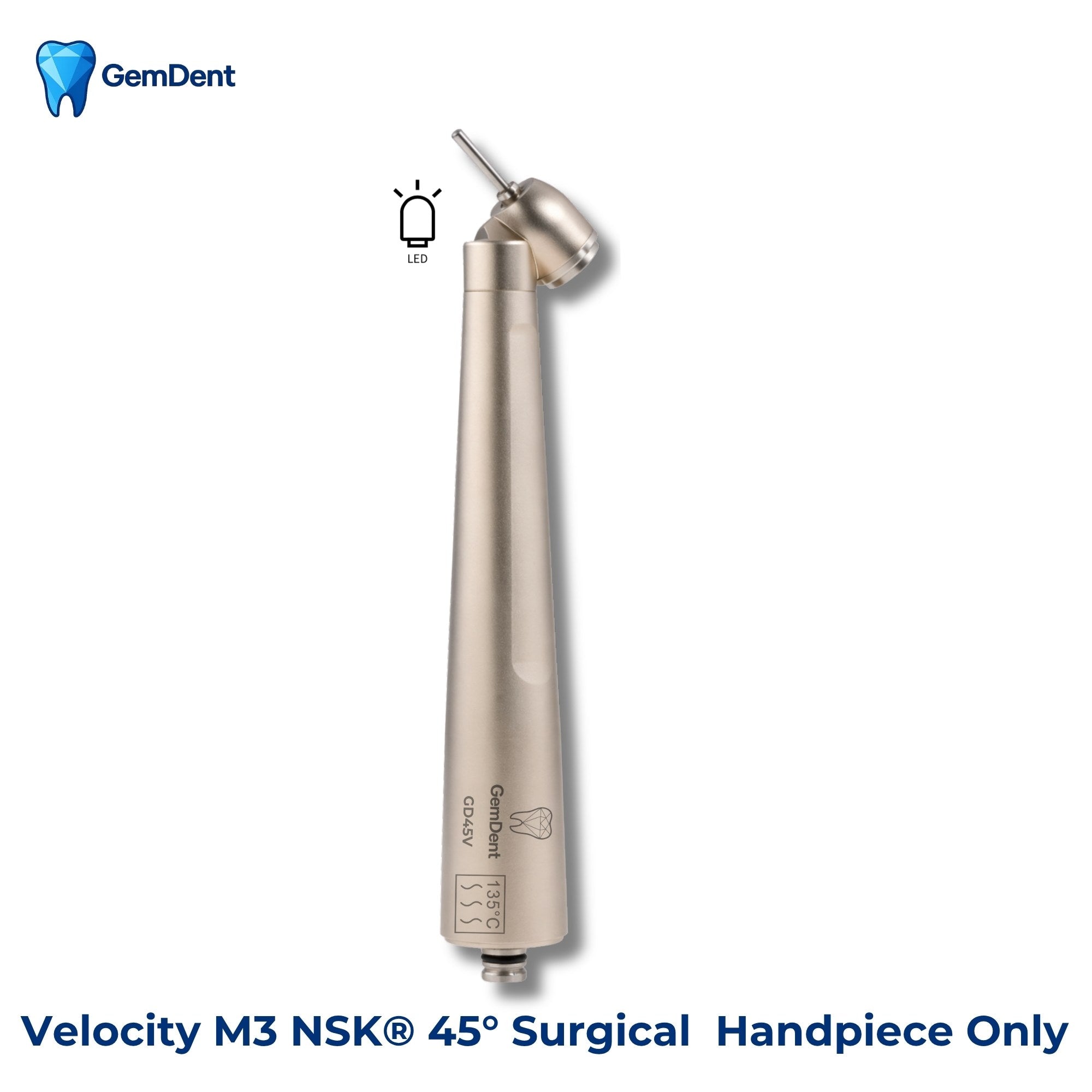

[UNIT] Purchase: Includes the M3 NSK handpiece only. Designed to fit standard NSK-style swivel couplers, but will not provide LED light unless paired with a generator-enabled model.
⚠️ If used with a standard non-light coupling, the handpiece will operate normally, but LED illumination will not function.
🛡️ Warranty
Backed by a 1-Year Limited Manufacturer Warranty for added peace of mind.
GemDent stands behind the quality of its products with responsive U.S.-based support and service. Our commitment to quality, reliability, and customer satisfaction ensures you can purchase with confidence.
